Xpress ii

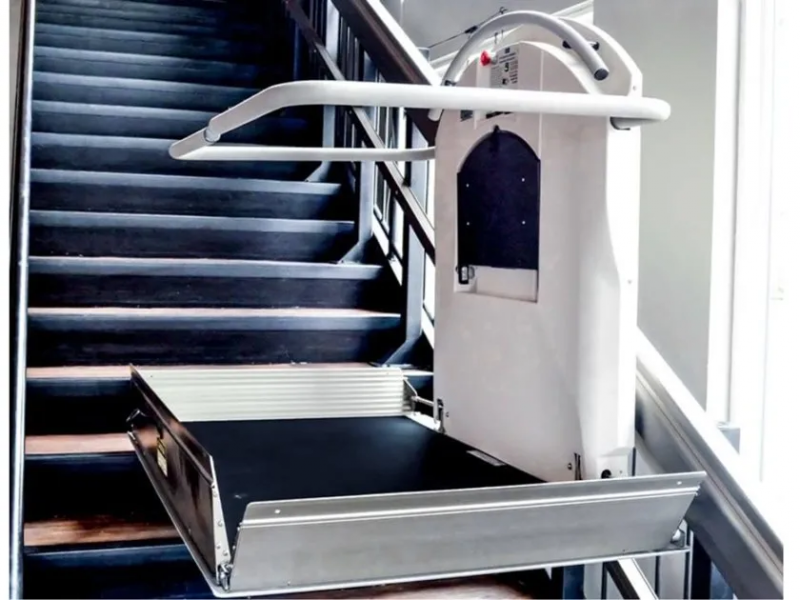

The Garaventa lift Xpress II inclined platform wheelchair lift is designed to provide economical access between two landings. The platform travels on two rails which are secured directly to the wall or to support towers and is propelled by means of a carriage mounted rack and pinion drive system. When the platform is not in use it is folded, taking up minimal space on the stairway. The Xpress II is cost-effective with a variety of standard and optional features available. It can be designed to suit the needs of the user and building owner. -Capacity: 250kg (550 lbs) -Choice of Three Platform Sizes: 800mm x 1250mm (31 1/2" x 49 1/4") | 800mm x 1000mm (31 1/2" x 39 3/8") | 750mm x 900 mm (29 1/2" x 35 1/2") -Drive System: The platform mounted drive system consists of a .75 H.P. motor, gearbox, pinion gear and flexible traveling cable. For the past three decades, Garaventa Lift has pioneered the use of inclined platform wheelchair lifts. This innovative equipment provides accessibility for people in wheelchairs and those who have difficulty using stairs. Garaventa Lift has tens of thousands of inclined platform wheelchair lift installations in public buildings and private residences all over the world. We have been manufacturing, installing and servicing wheelchair lifts since 1979.
