Studio t

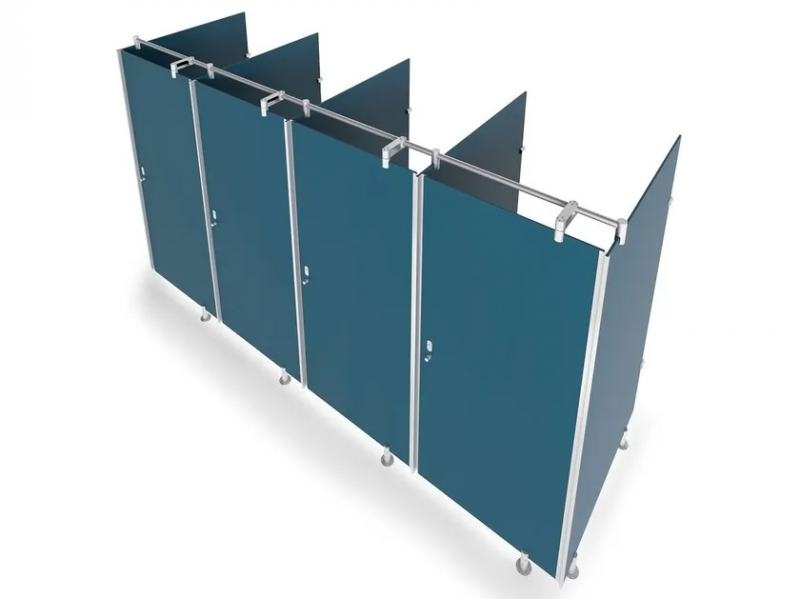

Studio T is a modular system for toilet cubicles. Toilet box with doors and partitions in tempered glass laminated with PVB film, thickness 5 + 5 mm, HST (Heat Soak Test) heat treatment, with rounded corners and beveled perimeter edges. HPL. Toilet box with doors and dividers in stratified HPL laminate, 10 mm thick, classified as a self-supporting panel with fire reaction Euro class Bs1-d0 and formaldehyde release class E1, with rounded corners and beveled perimeter edges. • Partition walls fixed with two clamps to the back wall, foot on the ground, clamp to the upper structural tube. • Doors equipped with a pivoting opening system with automatic return, consisting of: foot fixed to the ground, upper amortized clamp fixed to the structural tube by means of harmonic steel fins. • Horizontal tube for the upper anchoring of partitions and doors, with end supports fixed to the wall. Hardware The specific structural hardware, entirely designed by fit interiors, is made of extruded or lathe-worked aluminum. Accessories • Free / busy handle and lock • GLASS stainless steel stop profiles
