Mod 14

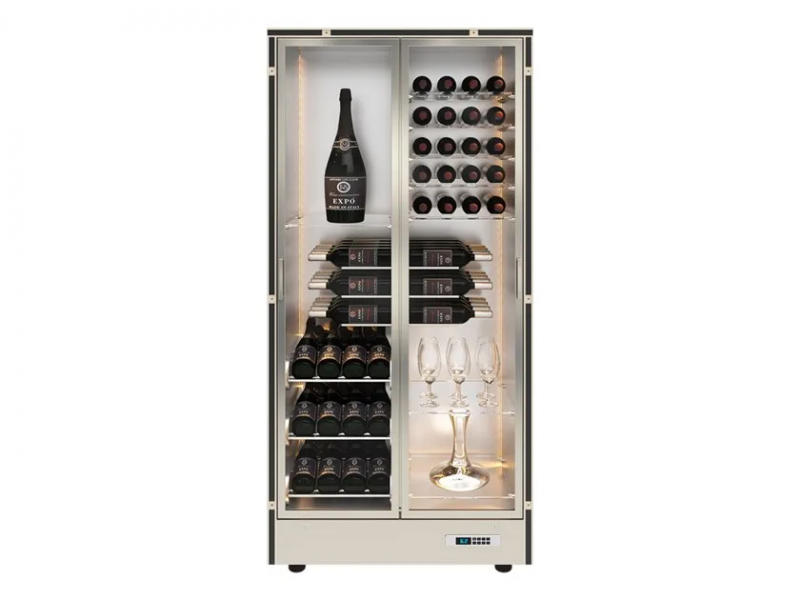

Mod 14 is a wine cabinet. A rich array of colors and finishes allows you to create unique and exclusive settings. A tangible response to the ever increasing need for customization. A new paradigm in separating environments can be embodied by the transparence of the wine cellar. Modular system – two or more different models of cabinet can be combined together. The composition has to be fitted with frames or linear cladding. The reduced depth version (H) may be included in Wine Living® furniture both with frame and flush installation. Specifications Aluminium structure Hinged doors with double glazing – UV protection Lock with key Sides and top panels polyurethane foam Aluminium interior Cold white daylight LED (3000 K - 30 led/mt - 1,12 W / mt - 130 lumen / mt) Inverter compressor Static and ventilated refrigeration Digital temperature controller Automatic defrosting and automatic evaporation system Anti-vibration system Rechargeable active carbon filter Temperature: +5 / +18 °C MD-H14 Noise level: 37 db Voltage: 230 / 50-60 Hz Absorption: 150 Watt kWh/annum: 240 Dimensions including packing on pallet: 1000 x 800 x 2060 mm Net weight: 97 Kg Weight with packing on pallet: 117 Kg Volume with packaging on pallet: 1,7 MD-M14 Noise level: 39 db Voltage: 230 / 50-60 Hz Absorption: 424 Watt kWh/annum: 383 Dimensions including packing on pallet: 1000 x 800 x 2060 mm Net weight: 103 Kg Weight with packing on pallet: 128 Kg Volume with packaging on pallet: 1,7 MD-C14 Noise level: 39 db Voltage: 230 / 50-60 Hz Absorption: 424 Watt kWh/annum: 398 Dimensions including packing on pallet: 1000 x 800 x 2060 mm Net weight: 116 Kg Weight with packing on pallet: 141 Kg Volume with packaging on pallet: 1,7 Sophisticated and ground-breaking, Expo’s climate wine cabinet collection Wine Living is a revolution in the enticing world of wine enthusiasts. Unique by concept and design, through the years they have become a symbol destined to become timeless, precious icons. The Wine Living collection is designed by Massimo della Marta, designer and wine enthusiast, inspired by a brand new vision. The wine cabinet is no longer placed in the kitchen it is now integrated in the living area – a space devoted to relax, conviviality and sociability. The designer’s vision was a winner, having foreseen future trends and outlining what was to become a very own brand identity. For the first time, climate wine cellars, from functional home appliances, become sophisticated pieces of furniture that gracefully and elegantly integrate in any ambience. World patents such as Quadro Vino, Teca, and the central cooling system, have confirmed the value of the brand’s know-how in wine design and thermodynamics applied to wine conservation.
