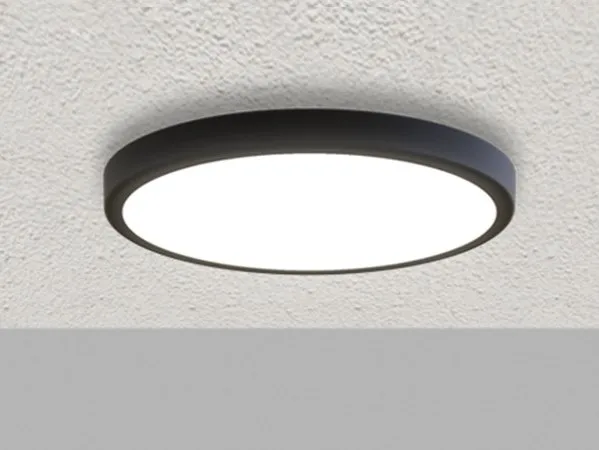

Padella P is a direct light ceiling lamp. High light emission and CRI 95 with the possibility to choose between the version with opal diffuser and prismatic diffuser with UGR 19. Available in ON / OFF version or dimmable via CASAMBI, DALI, push and 1-10V.
Specifications
Material Iron/aluminum
Weight 3500 g
IP rating IP20
Electrical specifications
Power supply unit Included
Supply voltage 220 V - 240 V
Power frequency 50 - 60 Hz
Total power 42 W
Dimming available Casambi - Dali - Push - 1-10 V
Light source
Type of source LED
Minimun voltage on secondary circuit 35 V
Absorption module LED 36.5 W
Color temperature 2700 K 3000 K 4000 K
Nominal LED flux 6332 lm 6527 lm 6760 lm
LED module efficiency 173 lm/W 178 lm/W 185 lm/W
Efficiency class LED D
Duration life L80/ B10 (25 °C) > 50.000 h
Device
Power device 42 W
Light flux 4369 lm 4503 lm 4664 lm
LED lamp efficiency 104 lm/W 107 lm/W 111 lm/W
Saturated red colour index (R9) >60 >70 >80
Colour rendering index (Ra) 95
SDCM 3
Optical system characteristics
Material lens Polycarbonate
