Offset

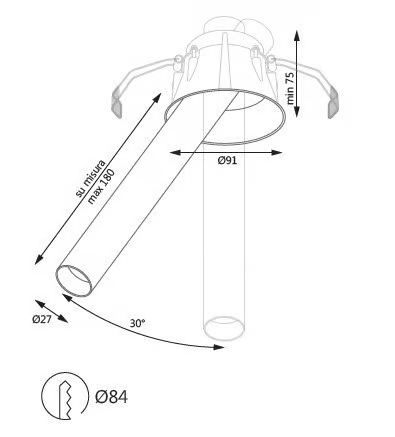

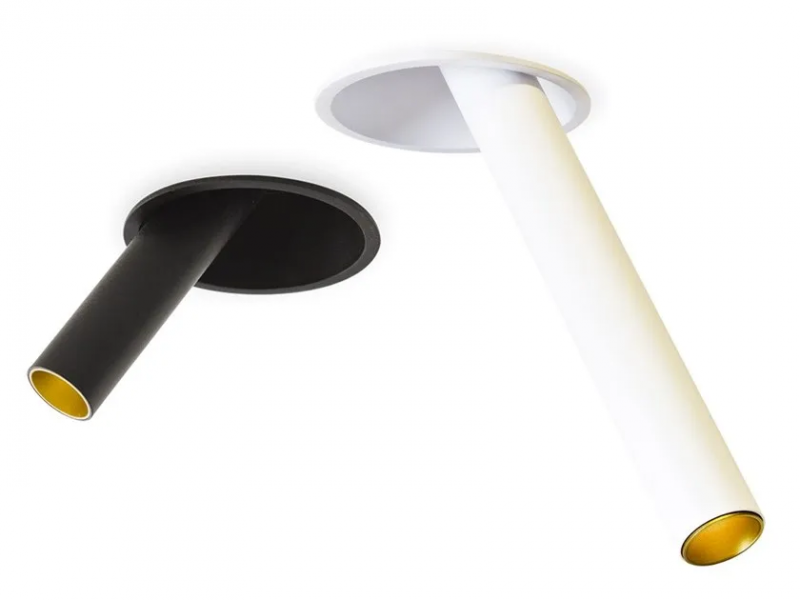

Offset is spotlight led adjustable lamp for those who want to change the light effects often within the environments. The recess takes place traditionally through a hole in the plasterboard. Once installed it can be adjusted to height, meaning it can be pulled out by 18 cm or inserted up to 2 cm from the plasterboard level. Once you have chosen the height you can tilt it from 0 ° to 30 ° and swivel it 360 °. Two optics are available, a 20 ° narrow and a 32 ° wide. Offset is available with various exterior and interior finishes. Specifications Material Aluminum Weight 322g Hole for built-in Ø84 mm IP rating IP20 Marking EAC / CE Electrical specifications Power supply unit Included Supply voltage 220V - 240 V Power frequency 50 - 60 Hz Total power 10 W Dimming available Casambi - Dali - Push - 1-10 V Light source Type of source LED Minimun voltage on secondary circuit 31 V LED driving current 260 mA Absorption module LED 8.6 W Color temperature 2700 K / 3000 K / 4000 K Nominal LED flux 1045 lm 1099 lm 1171 lm LED module efficiency 122 lm/W 128 lm/W 136 lm/W Efficiency class LED E Duration life L80/ B10 (25 °C) > 50.000 h Device Color temperature 2700 K 3000 K 4000 K Light flux 481 lm 506 lm 539 lm LED lamp efficiency 48 lm/W 51 lm/W 54 lm/W Saturated red colour index (R9)>80 >80 >80 Colour rendering index (Ra) 97 SDCM 2 Optical system characteristics Material lens Polycarbonate
