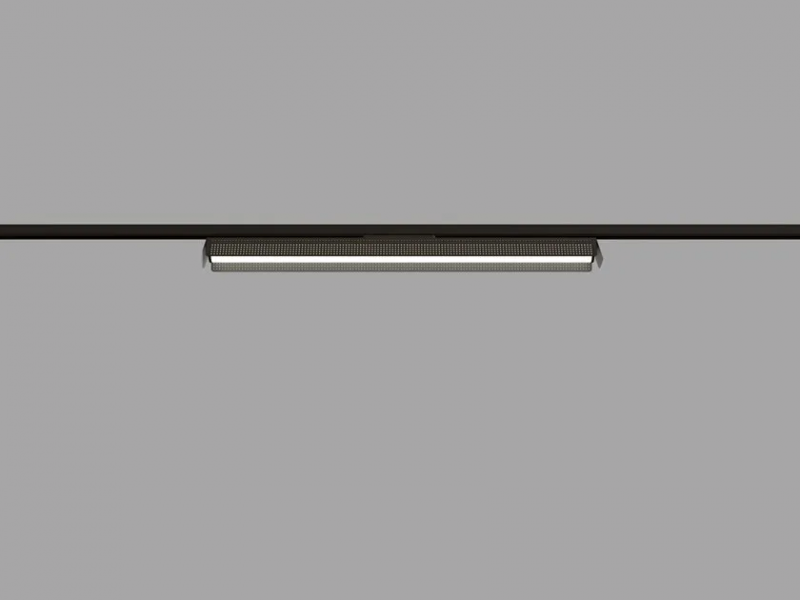

Armour track

Armour Track is a linear lamp with track connection that, thanks to a particular mechanical machining, creates an unique light effect. Available CRI 95. With Casambi it’s possible to manage the white light regulation. Track systems offer maximum flexibility ensuring a technical and modern design. We offer a range of track projectors and diffused light fixtures with high color rendering. We also have a series of accessories for glare control and luminous flux management. For some models, the SUNLIKE version is available, an LED technology without the peak of blue light that allows you to recreate the spectrum of sunlight, significantly increasing the quality of light. All our track products are available with the CASAMBI APP management system. Specifications Material Aluminum Weight 1000g IP rating IP20 Marking EAC / CE Electrical specifications Power supply unit Included Supply voltage 220V - 240 V Power frequency 50 - 60 Hz Total power 33.5 W Light source Type of source LED Minimun voltage on secondary circuit 21 V Absorption module LED 30.4 W Color temperature 2700 K / 3000 K / 4000 K Nominal LED flux 4741 lm / 4887 lm / 5061 lm LED module efficiency 155 lm/W / 160 lm/W / 166 lm/W Efficiency class LED D Duration life L80/ B10 (25 °C) > 50.000 h Power device 33.5 W Light flux 3792 lm / 3909 lm / 4048 lm LED lamp efficiency 113 lm/W / 116 lm/W / 120 lm/W Saturated red colour index (R9) 70 / 77 / 81 Colour rendering index (Ra) 95 SDCM 3 Optical system characteristics Material lens Polycarbonate
