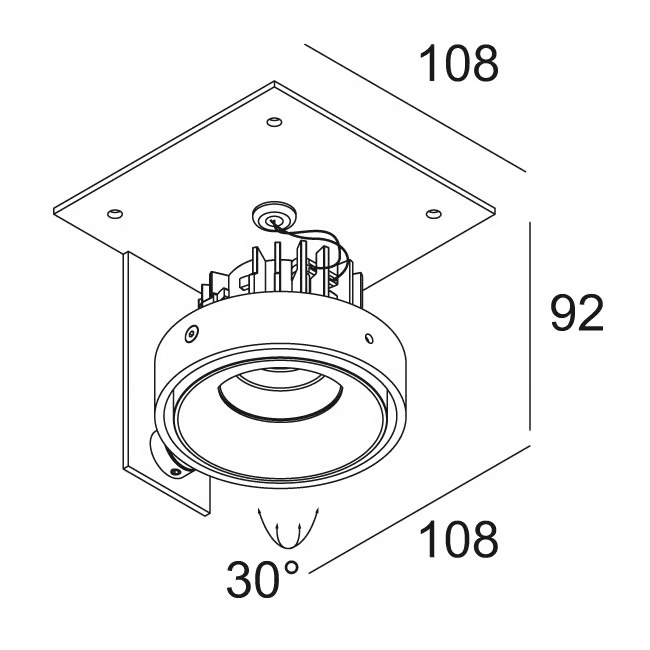

Габаритные размеры
Информация

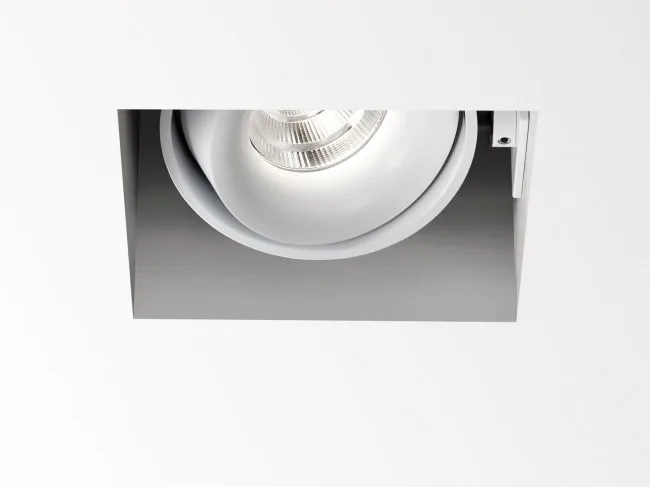

Minigrid In ZB LED is a LED adjustable square spotlight. Available colors: white, alu grey.
Technical characteristics
Adjustable 0-30°
9-Soft: 1 x LED 9,5W / CRI>90 / 2700-1800K / 760lm - Reflector FL-40°
92733: 1 x LED 7,1-10,4W / CRI>90 / 2700K / 779-1083lm - Reflector FL-33°
93033: 1 x LED 7,1-10,4W / CRI>90 / 3000K / 812-1128lm - Reflector FL-33°
IP23/20
Energy Class: F/E
Minigrid stands for clean lines and minimalist design. Theses luminaires can be built into a cove in the ceiling or an optional box can be used as easy installation frame. The Snap-In principle equals modularity and flexibility at its best, it grants the opportunity to the lighting designer to use his creativity: combine single and double units, use multiple beam angles or play with colour. All to use as surface mounted luminaire or as recessed spotlights, both with or without trim. Dividing a luminaire into multiple modular parts not only creates uniformity within one family, it also facilitates the installation by giving the opportunity to the installer to place the frame in advance.
