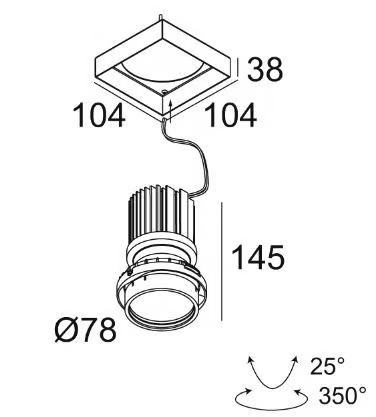

Габаритные размеры
Информация

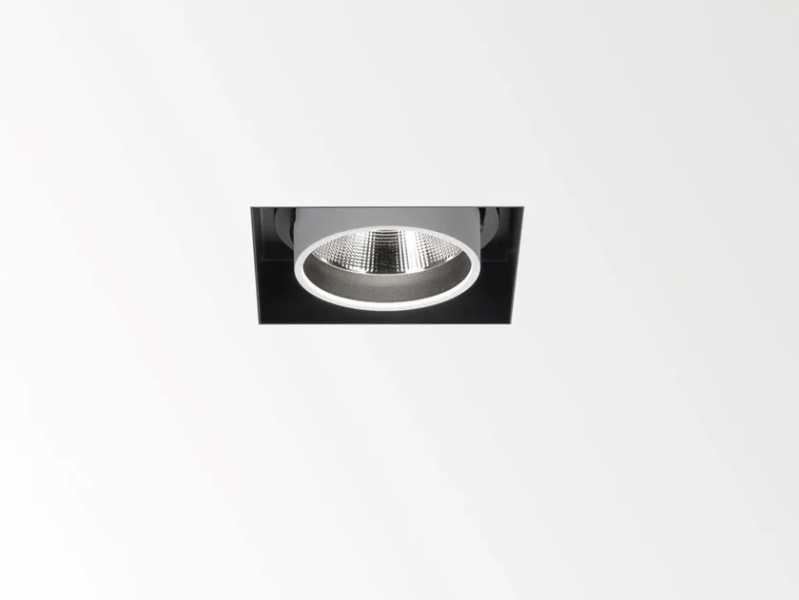

Minigrid In Trimless HP is a LED adjustable square spotlight.Available colors: black, white, black and white.
Technical characteristics
Adjustable 0-25°/355°
92720 / 92737 / 92750 : 1 x LED 16,3-23,2W / CRI>90 / 2700K / 2209-3031lm - Reflector SP-20° / FL-37° / WFL-50°
93020 / 93037 / 93050: 1 x LED 16,3-23,2W / CRI>90 / 3000K / 2309-3169lm - Reflector SP-20° / FL-37° / WFL-50°
IP20
Minigrid stands for clean lines and minimalist design. Theses luminaires can be built into a cove in the ceiling or an optional box can be used as easy installation frame. The Snap-In principle equals modularity and flexibility at its best, it grants the opportunity to the lighting designer to use his creativity: combine single and double units, use multiple beam angles or play with colour. All to use as surface mounted luminaire or as recessed spotlights, both with or without trim. Dividing a luminaire into multiple modular parts not only creates uniformity within one family, it also facilitates the installation by giving the opportunity to the installer to place the frame in advance.
