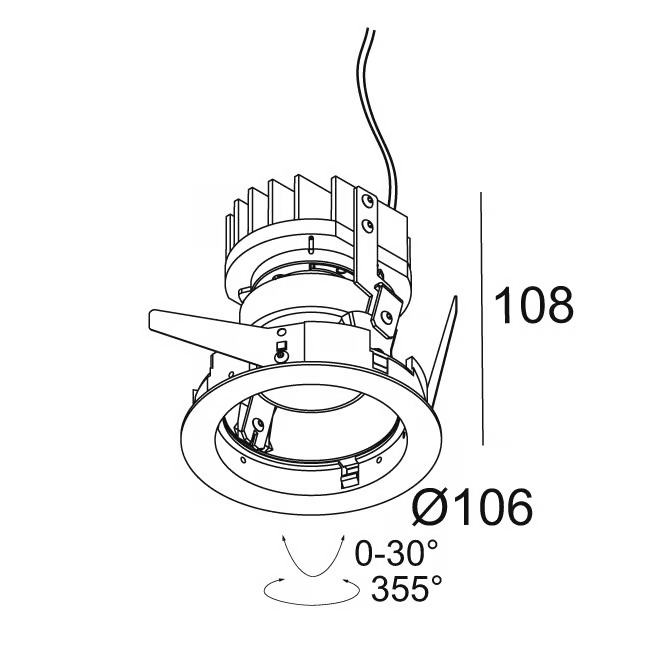

Габаритные размеры
Информация

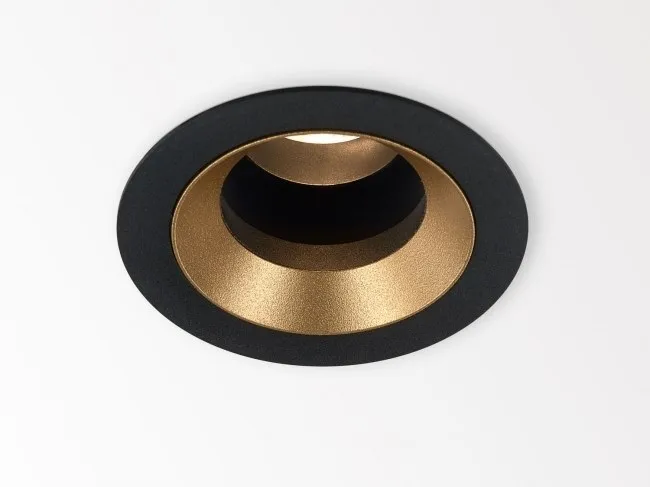

iMax® is a versatile accent lighting solution to emphasize individual objects or architectural elements. The tilt mechanism allows the luminaire to be angled with precision up to 30°, allowing for optimum beam alignment. As a result, the light is emitted exactly where you want it. To further reduce the visual impact on the ceiling, a mounting kit is available to install the luminaires flush with the ceiling. Available a range of variants.
Technical characteristics
Adjustable 0-30°/355°
9-SOFT: 1 x LED 9,5W / CRI>90 / 2700-1800K / 760lm - Reflector FL-40°
CL 9276: 1 x LED 2-3,2W / CRI>90 / 2700K / 201-280lm - Lens SP-6°
CL 9306: 1 x LED 2-3,2W / CRI>90 / 3000K / 229-319lm - Lens SP-6°
HO 9-SOFT: 1 x LED 15,7W / CRI>90 / 2700-1800K / 1257lm - Reflector FL-40°
92712/92720: 1 x LED 6,1-9W / CRI>90 / 2700K / 768-1067lm - Lens SP-12°/FL-20°
LP 92733: 1 x LED 6,1-9W / CRI>90 / 2700K / 768-1067lm - Lens FL-33°
93012/93020/93033: 1 x LED 6,1-9W / CRI>90 / 3000K / 775-1076lm - Lens SP-12°/FL-20°/FL-33°
MP 92718/92726/92739: 1 x LED 11,6-17,2W / CRI>90 / 2700K / 1458-2009lm - Lens SP-18°/FL-26°/FL-39°
MP 93018/93026/93039: 1 x LED 11,6-17,2W / CRI>90 / 3000K / 1524-2101lm - Lens SP-18°/FL-26°/FL-39°
IP20 / IP54
Energy Class: F
