M48 area

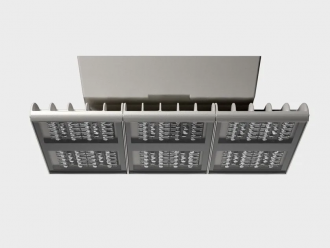

A versatile, modular, high performance, ceiling-mounted LED system, ideal for lighting retail spaces, industrial areas, arcades and covered car parks. The number of LED modules may vary from one to three depending on the level of performance required. Option of replacing any of the LED modules without having to make any manual electrical disconnections as there is no wiring between the modules. Option of fixing the luminaire directly to the busbar using the bracket kit supplied with all the busbar systems on the market. A ceiling mounting suspension system with cables and brackets is available. Connecting the system to a line is quick, easy and toolfree as the product does not need to be opened. The product is supplied with a DALI dimmable system and emergency system. The emergency system operates when connected to a centralised switching system between the 230V line and a DC voltage line, guaranteeing a minimum flux of 15% and a maximum flux of 60%. Colours: grey RAL 9006 or white RAL 9003. Optics: square large beam QU-D, rectangular asymmetric large beam RE-AD and rectangular focused RE-C. CRI (Colour Rendering Index): Ra ≥ 70. Average LED lifetime 80,000h@700mA@Ta25°C TM21. Compatible control systems: movement sensors and presence and light detectors, controlled by DALI protocol. The two and three module versions can be powered with separate drivers. Luminaire with no photobiological risk (EXEMPT GROUP) in compliance with EN 62471:2008 and the successive IEC/TR 62471:2009. Classification: CUT OFF. Nominal voltage 230 V 50 Hz Insulation class Class II Protection level IP IP66 Protection against impact IK08 Colour temperature 4000 K Weight 14.00 kg, 18.50 kg, 7.60 kg Labels and Certifications ENEC / CE Warranty 5 years for LED fittings
