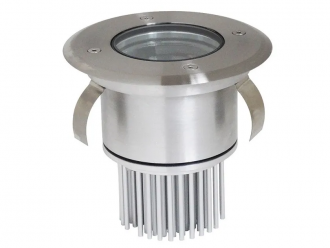

ZAXOR 10° | Waterproof IP67 stainless steel 316L in-ground LED 10° recessed luminaire with square/round cover plate and extra clear glass provide with im cable
With the new Zaxor LED, BEL Lighting extends its range of recessed ground spotlights with a powerful and compact model with reduced angle 10 °. Made in Belgium, this IK10 exterior luminaire manufactured by machining process is waterproof IP67 and is available with several variants of square or round plates. Zaxor LED is an environmentally friendly luminaire with minimal impact on the environment, it is the reliable and robust solution for many commercial or private projects.
DESCRIPTION:
Body made in solid anodised aluminum
Cover plate 4mm in stainless steel 316L
Screws and spring in stainless steel
Safety extra clear glass 10mm thickness
Led module incorporated
Max. 2140kg (21000 N)
Degree of protection IP67 - IK10
Provided with 1m cable
Energy class EC: A+
ACCESSORIES:
Recessed box : Pop 5b
Recessed box : Zaxor Box
Led driver CC (from 200mA to 450mA) (not included)
IP68 connection : Connex 2 / Connex 3
Anti-glare honeycomb : Louver ref: X060.064.3
LED:
W27 2700K - 10°
W30 3000K - 10°
COLOR:
16 Brushed stainless steel 316L
