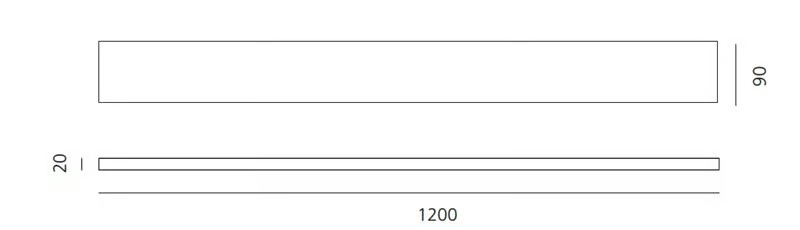

Габаритные размеры
Информация

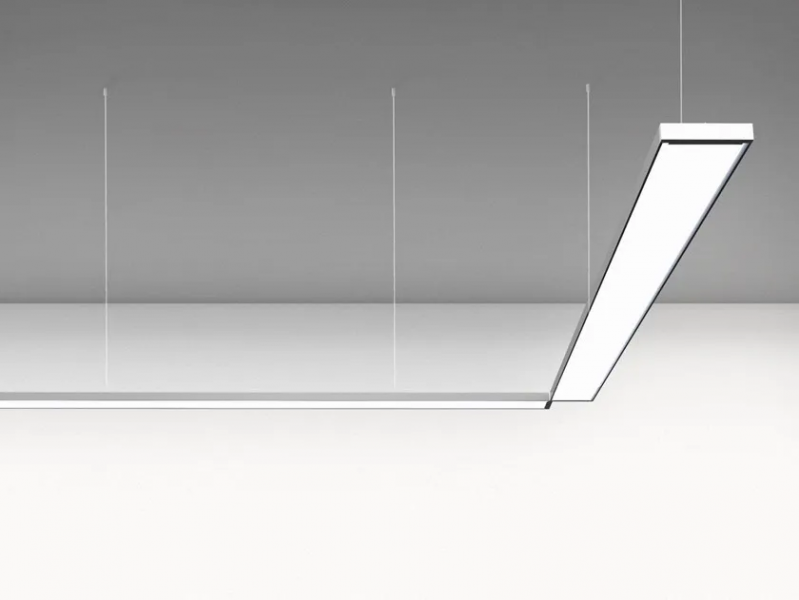

Pad System is the result of a study on the theme of office lighting, which defines a new way of producing light where functional quality and comfort are the main values. With the innovative patented ALEF (Advanced Light Emitting Film) technology of LG, Pad System upsets the traditional optical approaches (based on reflectors and refractors) used in working environments,which allow to control light emission but, at the same time, result intoa non-uniform appearance of the appliance’s output surface. With ALEF, a patent derived from TV-screen back lighting systems, PadSystem appears as a perfectly uniform luminous surface, capable to control emission over 60° beyond the appliance’s ordinary one while ensuring high uniformity values, low luminance levels, and an UGRbelow 19, according to the provisions of UNI 12464 (luminance at 65°<3000 cd/m2 – average UGR < 19). The appliance’s body has a very thin aluminium edge (90x20mm), which makes Pad System one of the world’s slimmest technical officelighting systems. Flexibility is ensured by the joints, which allow to obtain multiple modular configurations.
FEATURES
Article number: M3050W21 / M3050N21 / M3051W21 / M3051N21
Colour: White
Material: Aluminium
Watt : 53W / 39W
Luminous flux emitted: 5569lm / 6365lm / 3062lm / 3499lm
CCT: 3000K / 4000K
Efficiency: 85% / 81%.
Efficacy: 105.08lm/W / 120.09lm/W / 78.5lm/W / 89.72lm/W
CRI: 80
SOURCES INCLUDED
Category: Led
Number: 1
Watt: 48W 33W
Colour temperature (K): 3000K / 4000K
Luminous flux emitted: 7488 lm / 3780lm / 4320lm
CRI: 80
Efficacy: 157 lm/W / 116lm/W / 133lm/W
