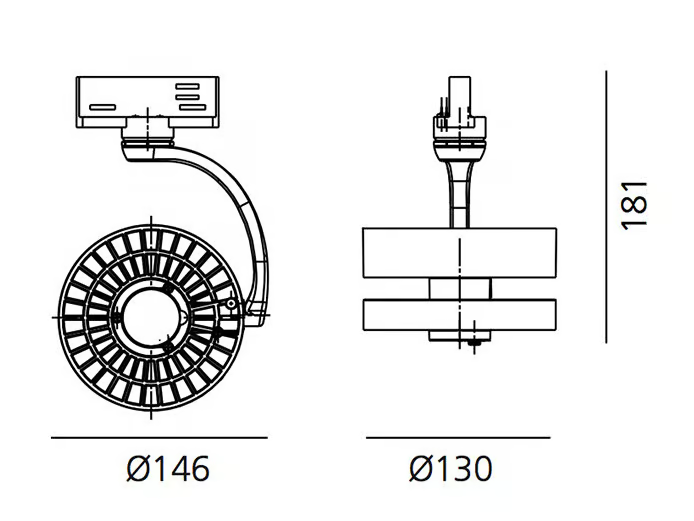

Габаритные размеры
Информация

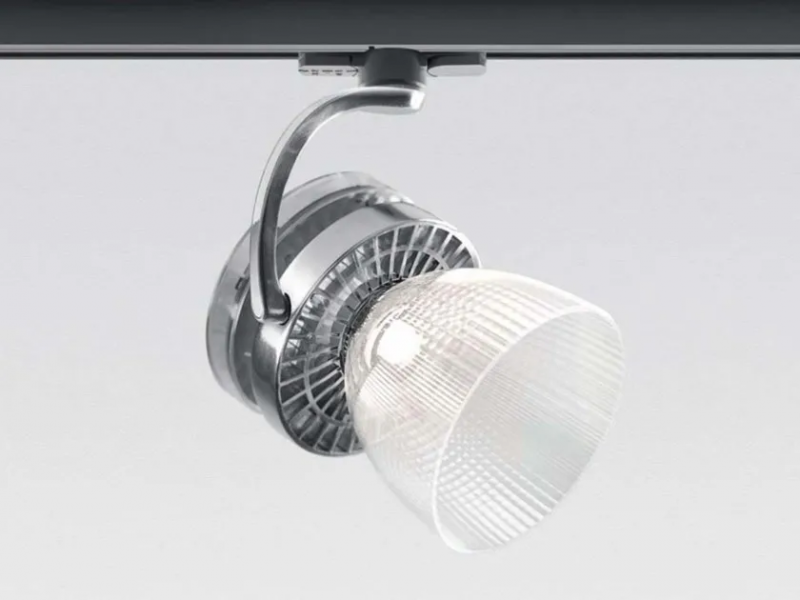

Cata Wide is a LED die cast aluminium track-Light.
FEATURES
Article code: M057383 + M057810 / M057483 + M057810
Colour: Polished aluminium
Installation: Track
Material: Aluminium, glass
Watt : 30W
Luminous flux emitted: 2122lm / 2254lm
CCT: 3000K / 4000K
Efficiency: 83%
Efficacy: 70.75lm/W / 75.12lm/W
CRI: 80
Tilt: -90+90
Rotation: 360°
Impact resistance: 850°
SOURCES INCLUDED
Category: Led
Number: 1
Watt: 30W
Colour temperature (K): 3000K / 4000K
CRI: =80 (min.)
Colour Tolerance: MacAdam 3SDCM
Service Life: L70(6K)>36000h
Interchangeable optical unit through a ‘twist & lock’ mechanism. Defined, concentrated light beams thanks to an innovative collimation system. 2 beam angles: 2x3,5°, 2x8°. Excellent quality of light: Cata Tuneable White: adjustable colour temperature from 2700K to 5700K CRI >93 (min.) Cata Stable White: available as warm white (3000K) and neutral white (4000K) – CRI=80 (min.). Rotation of 360°, tilt angle of +90°/-90° 2 installation options: with adaptor for 3-circuit track, or base plate for ceiling mounting. Ultra-flat power source (8mm height): DALI dimmable as standard, DALI8 interface hub for Tuneable White version. Materials : optic in transparent and metallic polycarbonate, heat sink in die-cast gloss aluminium, feeder/power supply in transparent polycarbonate, arm in die-cast gloss aluminium. Complies with standard EN60598.
