Airform is a modular 100% polyester fibre panel designed for thermal and acoustic insulation. A special thermoforming process perfectly combines Trevira CS fabric and polyester fibres to create Airform’s distinctive and aesthetically appealing rounded sides, without requiring any support frames.
Airtwin contains a percentage of recycled material (PET).
WHERE AND HOW

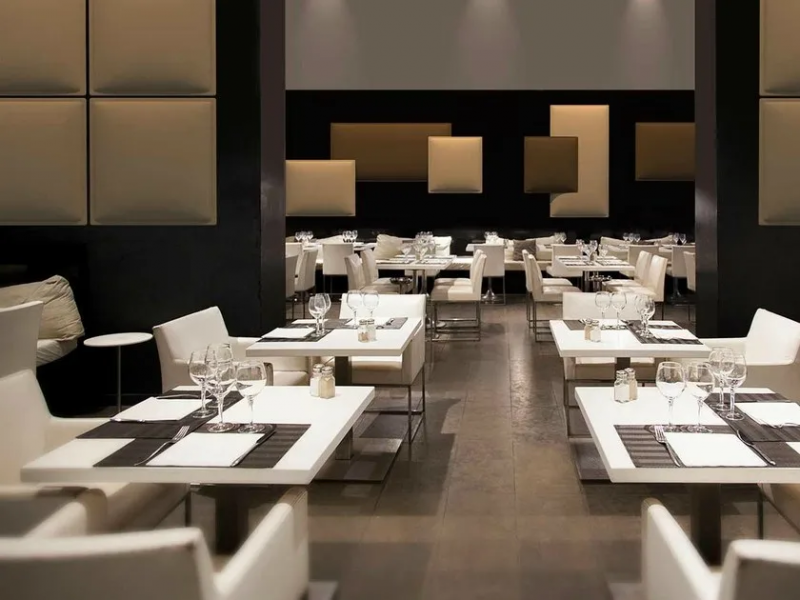

Printed or covered with fabric, Airform can be installed with only one visible side, along the walls, as a false ceiling or plafond, to correct reverberation without stifling creativity.
The different installation systems available emphasise the product’s flexibility, making it suitable for all kinds of environments.
DATA SHEET
100% polyester fibre modular panel for heat and sound insulation, 33 mm thick, hot melt “ROUNDED on 1 side” to a thickness of 4 mm on all four sides.
Sound absorption coefficient: (UNI EN ISO 354, UNI EN ISO 11654)
αw=0.70 (flush installation),
αw=0.80 (installation at a distance of 30 cm from ceiling/wall)
Density 66 Kg/m3
Conductivity: λ=0.0341 W/mk
Thermal Resistance: 1.173 mqKW/1
Reaction to fire: B s1 d0 (EN 13964)
Water vapour resistance factor µ=3.34
CE marked, class 1, F1
decorated with disperse sublimation dyes according to European OEKO-TEX standard.
For orders of less than 40 square meters, check the price list for available colour combinations.
MOUNTING SYSTEM
Wall or ceiling AIRFIX®
T24 ceiling grid.
SIZE
Square:
600 x 600 x 33 mm
Rectangular:
1200 x 600 x 33 mm
