Overall dimensions
Information

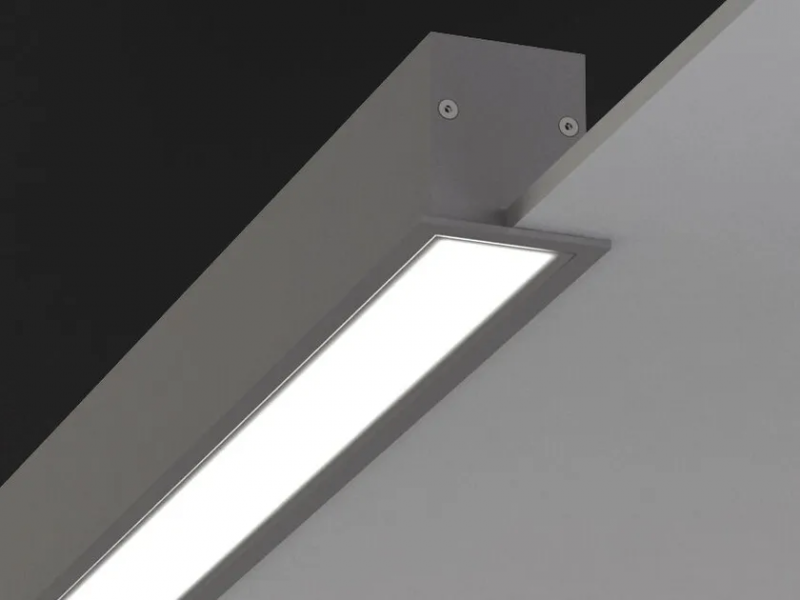

Stripe Go With Edges is a recessed lamp with edges made up of electrified single elements, aluminum designed for housing one or two IP20 led strips with high luminous flux 2150 lm/m (24W/m), and complete with end caps and satin PMMA diffuser. Body in anodized aluminum painted glossy white and matt black. Available in two white colour temperatures: warm 2900-3200K, natural 3700-4250K.
Features
STRIPE GO 50 WITH EDGES
IP43 / IP40
- 1 STRIP LED 12W 24V DC
706101000067 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 1000lm - CRI 80
706101000068 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 1000lm - CRI80
706101000069 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 1065lm - CRI80
706101000070 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 1065lm - CRI80
- 2 STRIP LED 24W 24V DC
706101000071 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 2000lm - CRI 80
706101000072 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 2000lm - CRI80
706101000073 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 2130lm - CRI80
706101000074 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 2130lm - CRI80
STRIPE GO 100 WITH EDGES
IP43 / IP40
- 1 STRIP LED 24W 24V DC
706101000075 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 2000lm - CRI 80
706101000076 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 2000lm - CRI80
706101000077 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 2130lm - CRI80
706101000078 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 2130lm - CRI80
- 2 STRIP LED 48W 24V DC
706101000079 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 4000lm - CRI 80
706101000080 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 4000lm - CRI80
706101000081 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 4260lm - CRI80
706101000082 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 4260lm - CRI80
STRIPE GO 150 WITH EDGES
IP43 / IP40
- 1 STRIP LED 36W 24V DC
706101000083 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 3000lm - CRI 80
706101000084 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 3000lm - CRI80
706101000085 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 3195lm - CRI80
706101000086 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 3195lm - CRI80
- 2 STRIP LED 72W 24V DC
706101000087 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 6000lm - CRI 80
706101000088 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 6000lm - CRI80
706101000089 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 6390lm - CRI80
706101000090 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 6390lm - CRI80
STRIPE GO 200 WITH EDGES
IP43 / IP40
- 1 STRIP LED 48W 24V DC
706101000091 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 4000lm - CRI 80
706101000092 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 4000lm - CRI80
706101000093 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 4260lm - CRI80
706101000094 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 4260lm - CRI80
- 2 STRIP LED 72W 24V DC
706101000095 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 8000lm - CRI 80
706101000096 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 8000lm - CRI80
706101000097 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 8520lm - CRI80
706101000098 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 8520lm - CRI80
The Stripe GO wall and ceiling project includes all the wall and ceiling-mounted STRIPE products ready to be installed, made up of elements with a narrow 45mm aluminum profile complete with plugs and diffuser. Inside the aluminum profile one or two IP20 strips are installed with a luminous flux of 2150lm/m (19.2W/m). Thanks to the optimal engineering of the Stripe GO Seamless and Stripe GO LED project, a continuous luminous flux emission without shadow zones is guaranteed even at the ends of the modules. Possibility of installing the dimmer to adjust the light intensity. Availability of solutions with emergency kit.
