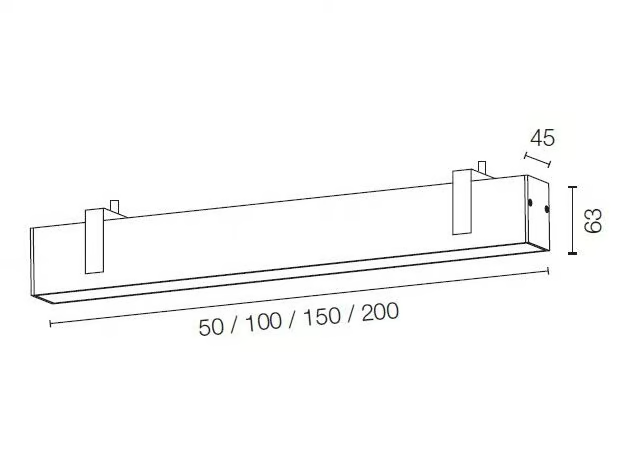

Overall dimensions
Information

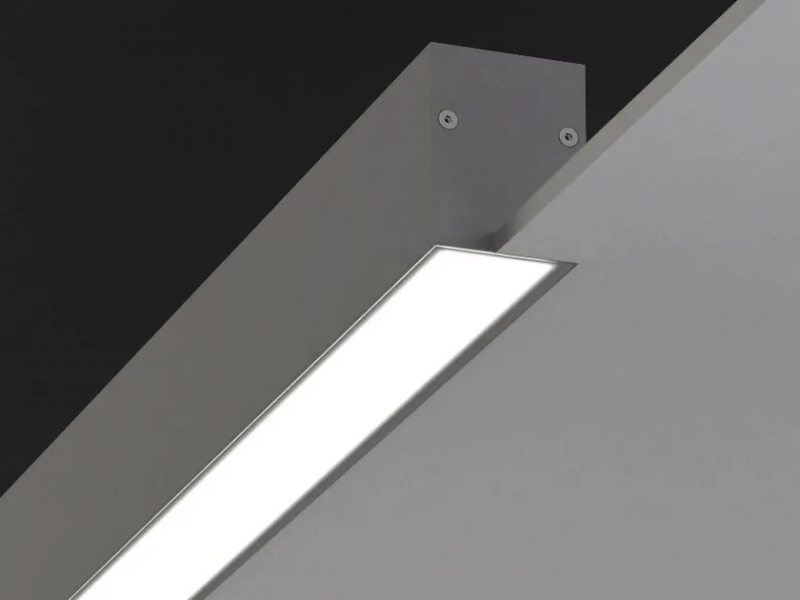

Stripe Go Frameless is a recessed lamp without edges consisting of a single aluminum element housing one or two LED strips (24W/m, 2150 lm/m) and complete with plug kit and diffuser in satin PMMA. Available in glossy white or black finishes, or on request in anodized brushed natural aluminum*. Available in two colours temperatures (warm 2900-3200K, natural 3700-4250K).
*On request finishings.
Features
STRIPE GO 50 FRAMELESS
IP43 / IP23 / IP40
- 1 STRIP LED 12W 24V DC
706101000035 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 1000lm - CRI 80
706101000036 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 1000lm - CRI80
706101000037 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 1065lm - CRI80
706101000038 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 1065lm - CRI80
- 2 STRIP LED 24W 24V DC
706101000039 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 2000lm - CRI 80
706101000040 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 2000lm - CRI80
706101000041 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 2130lm - CRI80
706101000042 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 2130lm - CRI80
STRIPE GO 100 FRAMELESS
IP43 / IP23 / IP40
- 1 STRIP LED 24W 24V DC
706101000043 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 2000lm - CRI 80
706101000044 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 2000lm - CRI80
706101000045 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 2130lm - CRI80
706101000046 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 2130lm - CRI80
- 2 STRIP LED 48W 24V DC
706101000047 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 4000lm - CRI 80
706101000048 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 4000lm - CRI80
706101000049 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 4260lm - CRI80
706101000050 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 4260lm - CRI80
STRIPE GO 150 FRAMELESS
IP43 / IP23 / IP40
- 1 STRIP LED 36W 24V DC
706101000051 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 3000lm - CRI 80
706101000052 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 3000lm - CRI80
706101000053 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 3195lm - CRI80
706101000054 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 3195lm - CRI80
- 2 STRIP LED 72W 24V DC
706101000055 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 6000lm - CRI 80
706101000056 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 6000lm - CRI80
706101000057 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 6390lm - CRI80
706101000058 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 6390lm - CRI80
STRIPE GO 200 FRAMELESS
IP43 / IP23 / IP40
- 1 STRIP LED 48W 24V DC
706101000059 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 4000lm - CRI 80
706101000060 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 4000lm - CRI80
706101000061 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 4260lm - CRI80
706101000062 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 4260lm - CRI80
- 2 STRIP LED 72W 24V DC
706101000063 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 8000lm - CRI 80
706101000064 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 8000lm - CRI80
706101000065 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 8520lm - CRI80
706101000066 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 8520lm - CRI80
The Stripe GO wall and ceiling project includes all the wall and ceiling-mounted STRIPE products ready to be installed, made up of elements with a narrow 45mm aluminum profile complete with plugs and diffuser. Inside the aluminum profile one or two IP20 strips are installed with a luminous flux of 2150lm/m (19.2W/m). Thanks to the optimal engineering of the Stripe GO Seamless and Stripe GO LED project, a continuous luminous flux emission without shadow zones is guaranteed even at the ends of the modules. Possibility of installing the dimmer to adjust the light intensity. Availability of solutions with emergency kit.
