Overall dimensions
Information

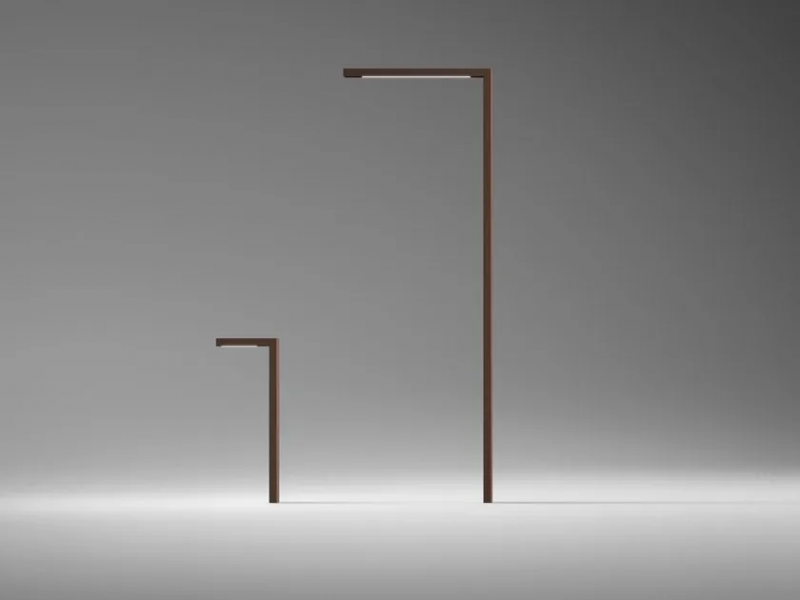

Palo Alto lamps are a design proposal authored by Xuclà . The Palo Alto collection offers an outdoors standard lamp design defined by its pure refined silhouette. Vibia offers the user several models to choose from that are differentiated by size and shape so that they can integrate with any user requirements, suitable for private residential use.All of the variations on the Palo Alto collection use LED lights.
Installation type
Built-in
Shade
Polycarbonate diffuser
Materials
Body: Steel
Lid: Steel
Palo Alto 4510
Electrical characteristics
Led 2700K CRI >90 362 lm 82.27 lm/W
Fixture 89.82 lm 20.41 lm/W
Driver included: CC - Constant Current 700 mA 100~240V 50/60Hz
Photometric data
Efficiency : 22.19 lm/W
Coordination system : CG
Total Flux : 89.82 lm
Maximum value : 64.52 cd
Palo 4516
Electrical characteristics
Led 2700K CRI >90 1044.95 lm 70 lm/W
Fixture 989.94 lm 70.71 lm/W
Driver included: CV - Constant Voltage 100~277 V 50/60Hz
Photometric data
Efficiency : 59.86 lm/W
Coordination system : CG
Total Flux : 989.94 lm
Maximum value : 3891 cd
Palo 4539
Electrical characteristics
Led 2700K CRI >90 2076.32 lm 69 lm/W
Fixture 1972.11 lm 70.43 lm/W
Driver included: CV - Constant Voltage 127~370V 50/60Hz
Photometric data
Efficiency : 100 lm/W
Coordination system : CG
Total Flux : 1972.11 lm
Maximum value : 3928.92 cd
Palo 4540
Electrical characteristics
Led 2700K CRI >90 3045.38 lm 68 lm/W
Fixture 2979.29 lm 70.94 lm/W
Driver included: CV - Constant Voltage 127~370V 50/60Hz
Photometric data
Efficiency : 100 lm/W
Coordination system : CG
Total Flux : 2979.29 lm
Maximum value : 3892.74 cd
