45°
ICB-65114
Потолочный светильник
2020

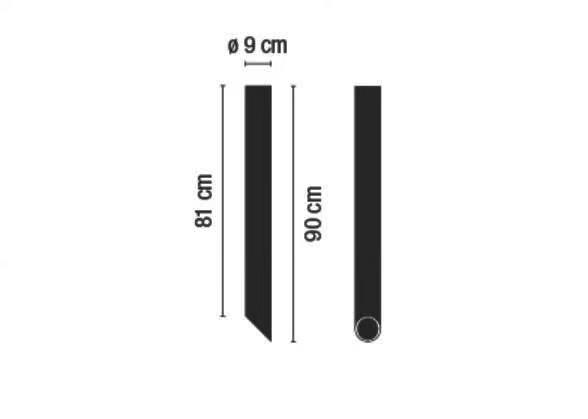

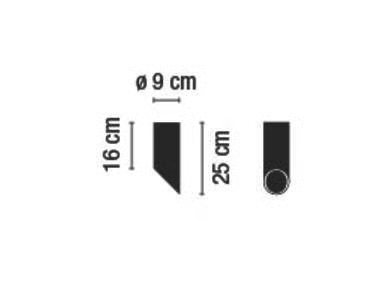

Art. 8250; Height: 16-25 cm Base: Ø 9 cm; Art. 8251; Height: 36-45 cm Base: Ø 9 cm; Art. 8252; Height: 81-90 cm Base: Ø 9 cm
Overall dimensions
Information
45º is a ceiling light allowing the creation of different vertical compositions with downward lighting, combining different tubes. Designed by Víctor Carrasco, it is available in three colours: matt white lacquer, black or satin bronze.
Installation type
Surface Canopy
Shade
Polycarbonate diffuser
Materials
Tube: Aluminum
Diffuser: Polycarbonate
Electrical characteristics
Led 2700K CRI >90 714 lm 109 lm/W
Fixture 188 lm 22 lm/W
Driver included: CC - Constant Current 350 mA 230V 50Hz
Photometric data
Efficiency : 26.34%
Coordination system : CG
Total Flux : 713.71
Maximum value : 458.21
