Information

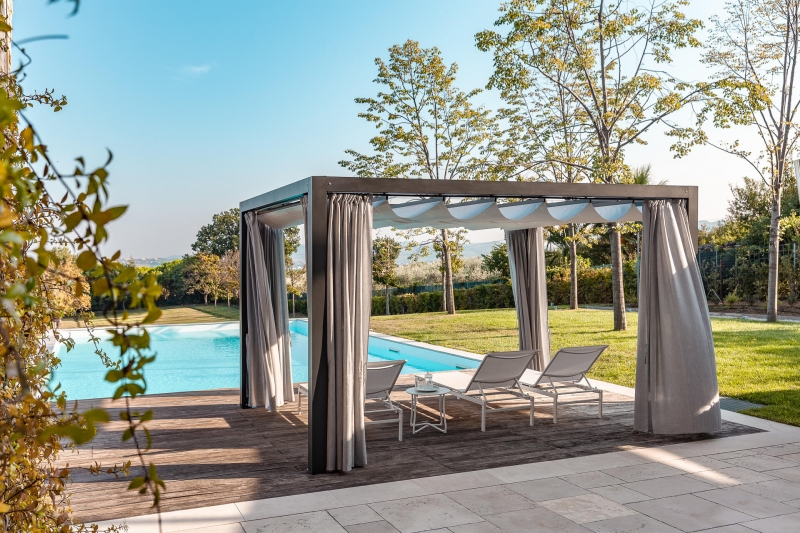

Our Mood range expands to meet the ever-changing needs of our customers with Mood Ype. The load-bearing structure, made entirely from 120 x 120 mm section aluminium profiles, has greater stability and sturdiness, while the cover sheet, which can be retracted manually, can reach a maximum area of 5 x 5 metres. Mood Ype provides numerous new configurations and customisations: alongside the traditional side curtains and the lighting system with LED strips, in fact, we have added shady side panels, vertical reller curtains and lastly the possibility to add a perimeter gutter channel for the collection of rainwater. The perimeter gutter, which considerably increases the product’s performance level, transforms the pavilion into a perfect response even for the most demanding Contract solutions.Technical info:- pillar section 120 x 120 x 2 mm- beam section 120 x 120 x 2 mm- possibility of custom production up to a maximum of 500 x 500 cm- extruded aluminium profiles, primary alloy UNI6060 and stainless-steel screws- epoxy powder coating resin polyester, UV-resistant- customized powder coating available in other RAL color on request (prior approval of our technical office)- manual retractable roof- runoff of rainwater guaranteed by the inclination of the ducts in the cover cloth fabric- standard awning in PVC STAM, sealed, waterproof, flame retardant class 2/UNI9177Optionals:- roof in compact transparent polycarbonate for the protection of cover in collection position- dimmable led strips integrated into the aluminium profiles of the sliding cover- side curtains in acrylic fabric with zipper closure and fastening profiles to the columns- vertical roller curtain in SOLTIS 96 fabric, with manual or motorized winch, complete with sliding steel wires- shady side shield made of aluminium profiles available in the colour of the frame- also available with with gutters
Подробная информация от производителя о MOOD YPE UNOSIDER
