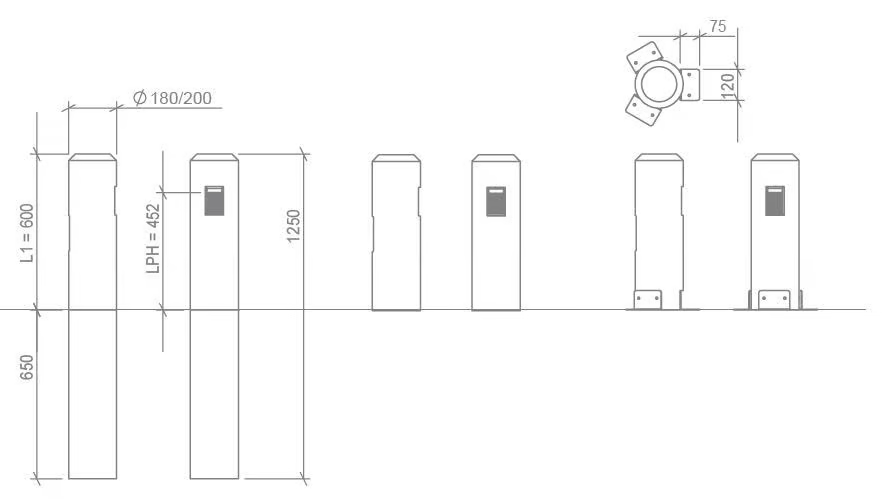

Overall dimensions
Information

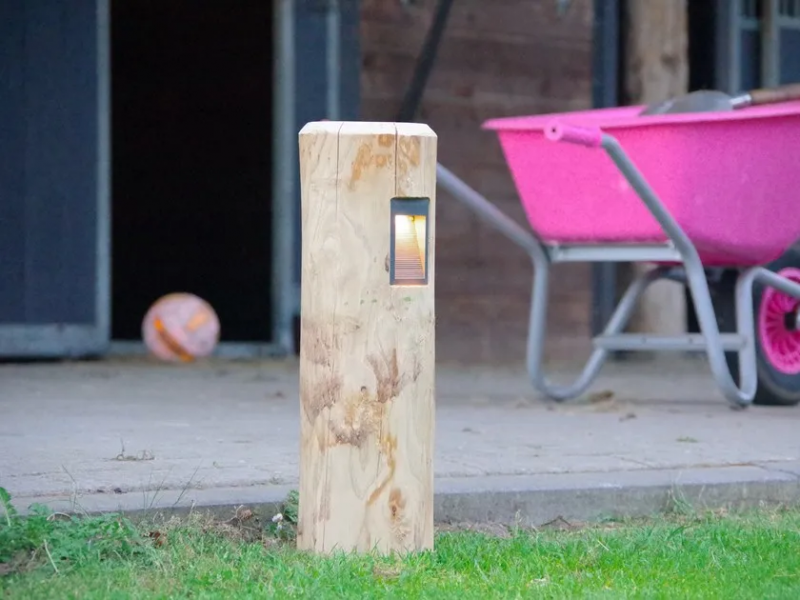

Piatto slim armature lighting poles feature unique and indirect lighting, providing a sleek and modern lighting solution for outdoor spaces. With minimal light pollution and maximum light output, these lighting poles provide an effective and eco-friendly lighting solution that won't interfere with the surrounding environment. Additionally, these poles are easy to connect, making installation a breeze.
SPECIFICATIONS
• Wood type: Chestnut
• Thickness: 180/200 mm
• IP class: IP54
• Power per LED module: 3.6 Watt
• Colour fixture: Gray RAL 7016
• Lumen output per LED module: 2.700K = 121 lm / 4.000K = 153 lm / amber = 47 lm
• Beam angle: The LED module has a beam angle of 105x50 degrees.
OPTIONS
• Voltage: 230 VAC or 12-24 V AC/DC
• Quality mark: PEFC
• Accessories: The PIATTO is available with or without floor brackets. See chapter ‘post holders’ for all technical data on the different post holders.
• Light colour: Available in 2.700, 4.000 K and amber (593 nm).
• Connection: Possible with cable or without cable (1 mtr 3x 1.5 mm2). A 32mm hole in the fixture as standard for easy passage for your ground cable.
