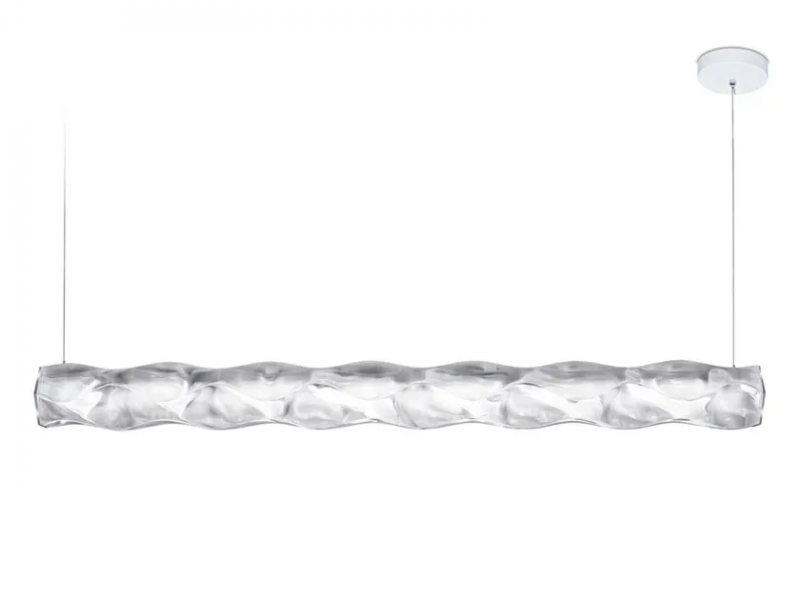

Hugo architectural system

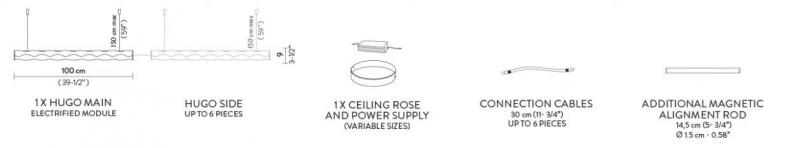

The innovative Hugo Architectural system allows for up to 7, one meter-long elements to be connected using a single electric output, power supply and rosette. The Architectural system can be configured using a variation of 2 to 7 elements, depending on the designer’s aesthetic and lighting needs. Hugo offers technical-quality lighting without losing Slamp’s iconic aesthetic value. The main office requirements established in the UNI EN 12464-1:2011 standard require an average illumination of 500 lx on work surfaces, a coefficient of uniformity U0 greater than 0.6 and a glare value (UGR) of less than 19. Both the Prisma and White versions easily conform to these requirements, including a CRI (colour rendering index) greater than 90. 2 ELEMENTS 40W – 100-240V / 24Vdc 7000 Lumen – 3000 Kelvin Dimmable with: PWM , 0-10 3 ELEMENTS 60W – 100-240V / 24Vdc 10.500 Lumen – 3000 Kelvin Dimmable with: PWM , 0-10 or Potenziometer 4 ELEMENTS 80W – 100-240V / 24Vdc 14.000 Lumen – 3000 Kelvin Dimmable with: PWM , 0-10 or Potenziometer 5 ELEMENTS 100W – 100-240V / 24Vdc 17.500 Lumen – 3000 Kelvin Dimmable with: PWM , 0-10 or Potenziometer 6 ELEMENTS 120W – 100-240V / 24Vdc 21.000 Lumen – 3000 Kelvin Dimmable with: PWM , 0-10 or Potenziometer 7 ELEMENTS 140W – 100-240V / 24Vdc 24.500 Lumen – 3000 Kelvin Dimmable with: PWM , 0-10 or Potenziometer
