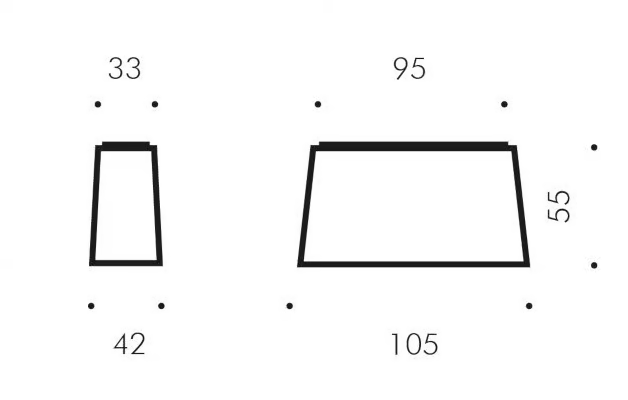

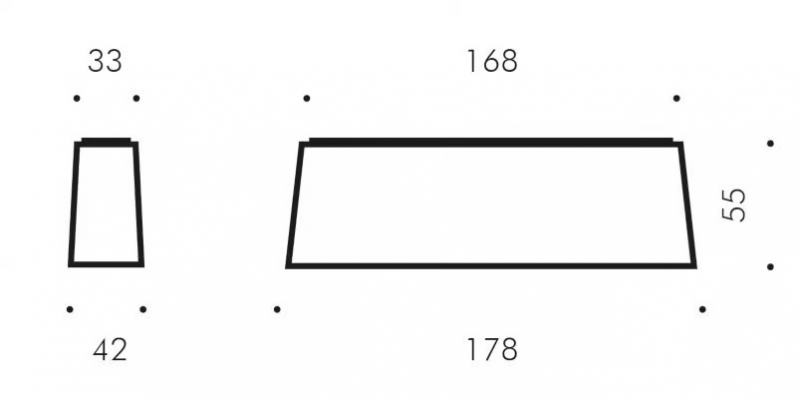

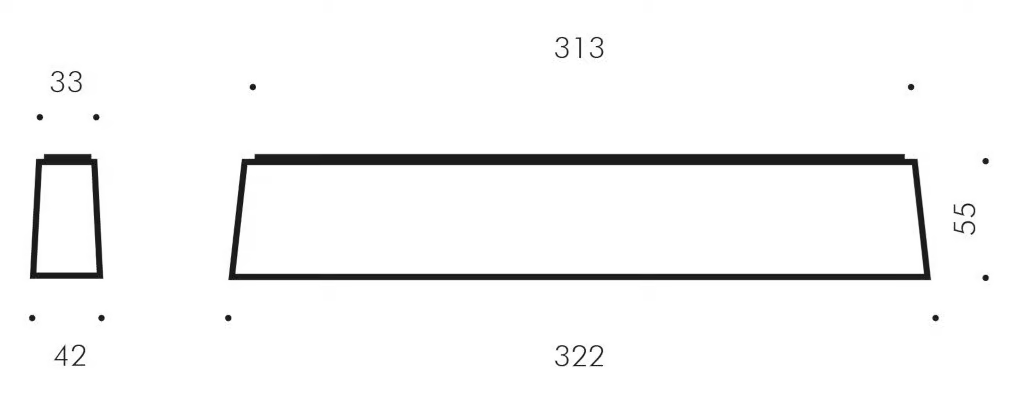

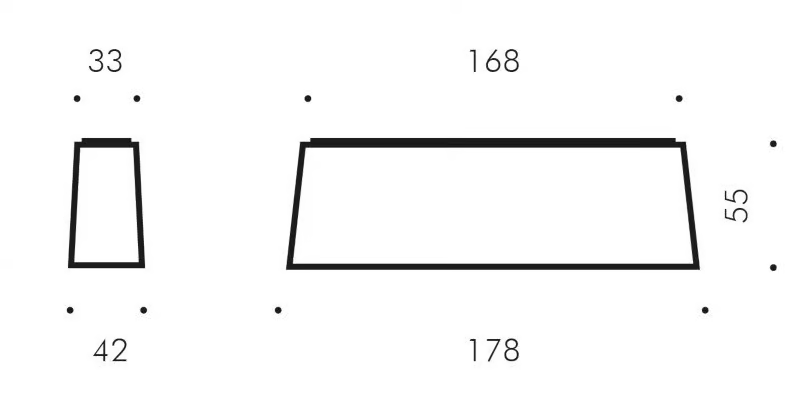

Overall dimensions
Information

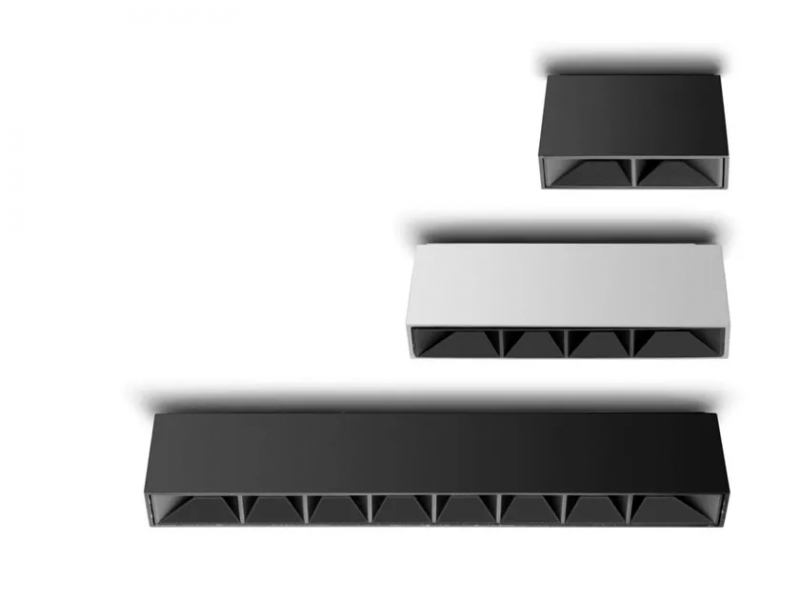

Ceiling is a family of surface mounted downlights with clean lines and compact sizes, that integrates perfectly in any context and architecture. The comfort rearward optics ensure the total absence of glare and excellent light beam distribution. Ceiling is available in three sizes, all with a reduced depth of only 55mm. Thanks to the clip-on fixation mechanism of the body to the base, Ceiling is totally free of visible screws. Die-cast aluminium housing with high corrosion resistance. Reflectors in polymers covered with aluminium. Nylon black shutters. Toughened glass diffuser 5mm thick in rearward position between the aluminium reflectors and the nylon black shutters. Not visible stainless steel A4 screws. Luminaire pre-wired with 5,0m bipolar flat cable. Double powder paint.
CEILING 2 LED
S.9060H: 2 LED - 2700K - 5W - 24V - CRI 90
S.9060N: 2 LED - 4000K - 5W - 24V - CRI 80
S.9060W: 2 LED - 3000K - 5W - 24V - CRI 90
CEILING 4 LED
S.9065H: 4 LED - 2700K - 10.2W - 24V - CRI 90
S.9065N: 4 LED - 4000K - 10.2W - 24V - CRI 80
S.9065W: 4 LED - 3000K - 10.2W - 24V - CRI 90
CEILING 8 LED
S.9070H: 8 LED - 2700K - 18.8W - 24V - CRI 90
S.9070N: 8 LED - 4000K - 18.8W - 24V - CRI 80
S.9070W: 8 LED - 3000K - 18.8W - 24V - CRI 90
