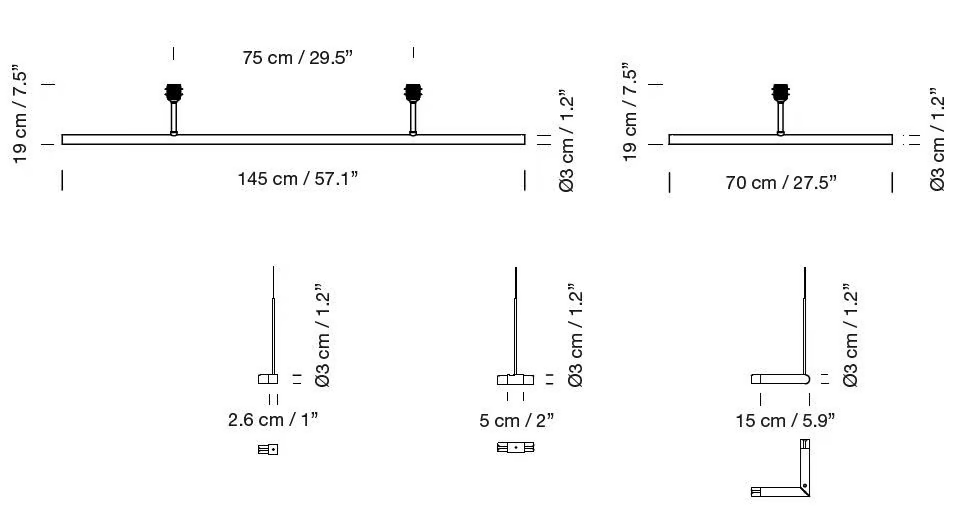

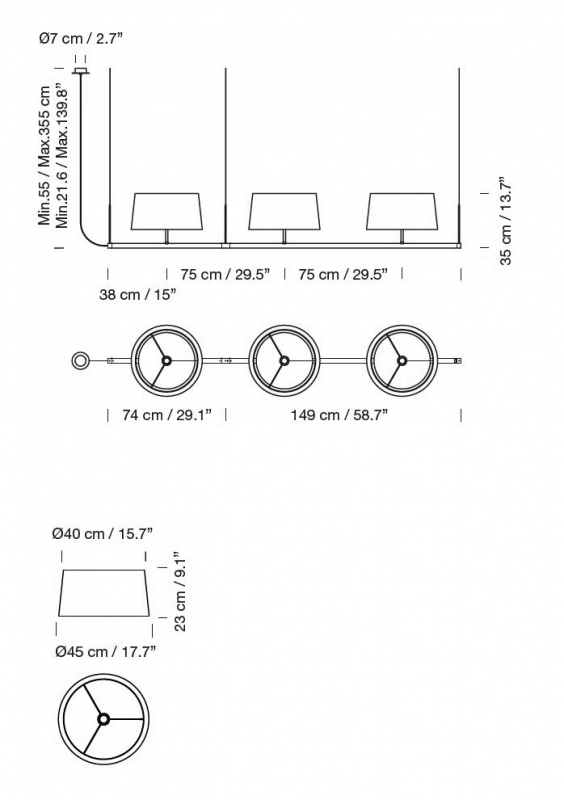

Overall dimensions
Information

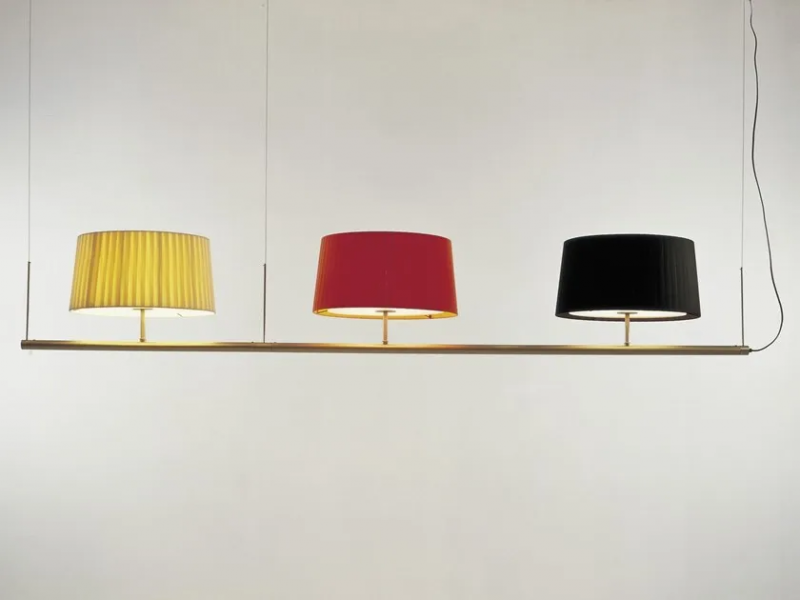

Sistema Gran Fonda is a larger version of its predecessor, providing lavish lighting through an entirely modern presence. Using segments of one or three shades, and three types of connectors between them, an entire lighting system is arranged, based on linear tube structures on which shades are placed, dressed in ribbons, cardboard or white linen.
Technical information:
Satin nickel tubular structure for 1 or 2 lampshades.
Shade available in 7 finishes: White linen
natural, red-amber or black ribbon and terracotta, mustard or green Raw Color ribbon.
Each lampshade includes a translucent white diffuser disk.
S&C satin nickel metallic ceiling plate. Suitable for side entry adaptor.
Maximum 1200W per line (6A). One connection per line.
Junction Box adaptor included Ø 11,7 cm / 4.6" (UL market).
Weight (structure with 1 lampshade): 4 kg / 8.8 lb
Weight (structure with 3 lampshades): 6,3 kg / 14 lb
Recommended light sources:
LED bulb: 12W.
Other light sources: Max. 100 W
