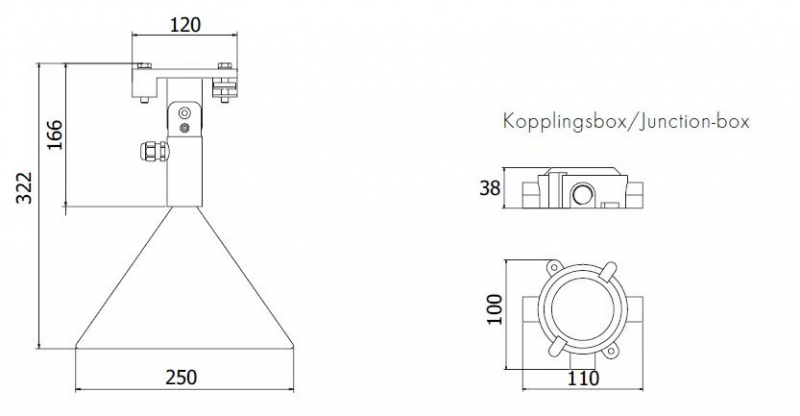

Overall dimensions
Information

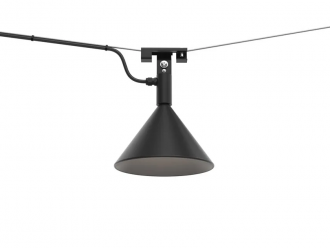

LUMO is a painted die-cast aluminum in black RAL 9005 catenary lamp.
Wire-fitting in stainless steel. Diffuser in matt acrylic. Can be ordered with diffuser in Masterpoint glass. Other colours on request.
LED info
System power: 22W. Luminaire Luminous Flux: 1690LM. CCT 3000K. SDCM 3. CRI 90. L70/55000H.
Can be delivered with 2700K, 4000K on request.
Installation
On wire, 3-6mm.
Connection
Delivered with 2 m black cable 3x1,5mm2 when DALI 5x1,5mm2.
Separete junction-box can be ordered as accessory.
