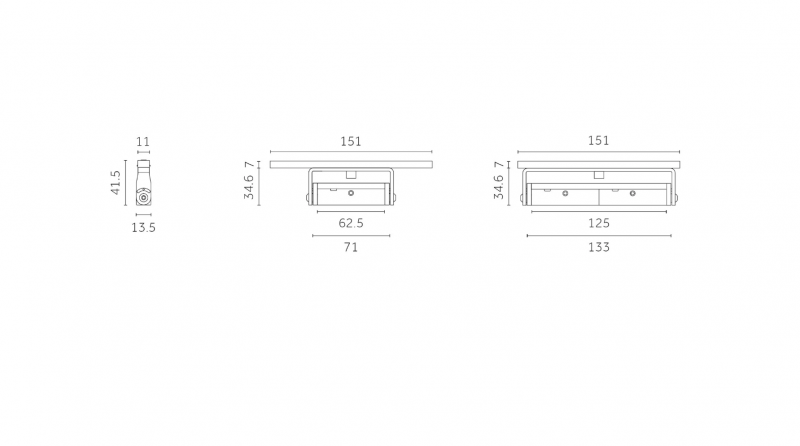

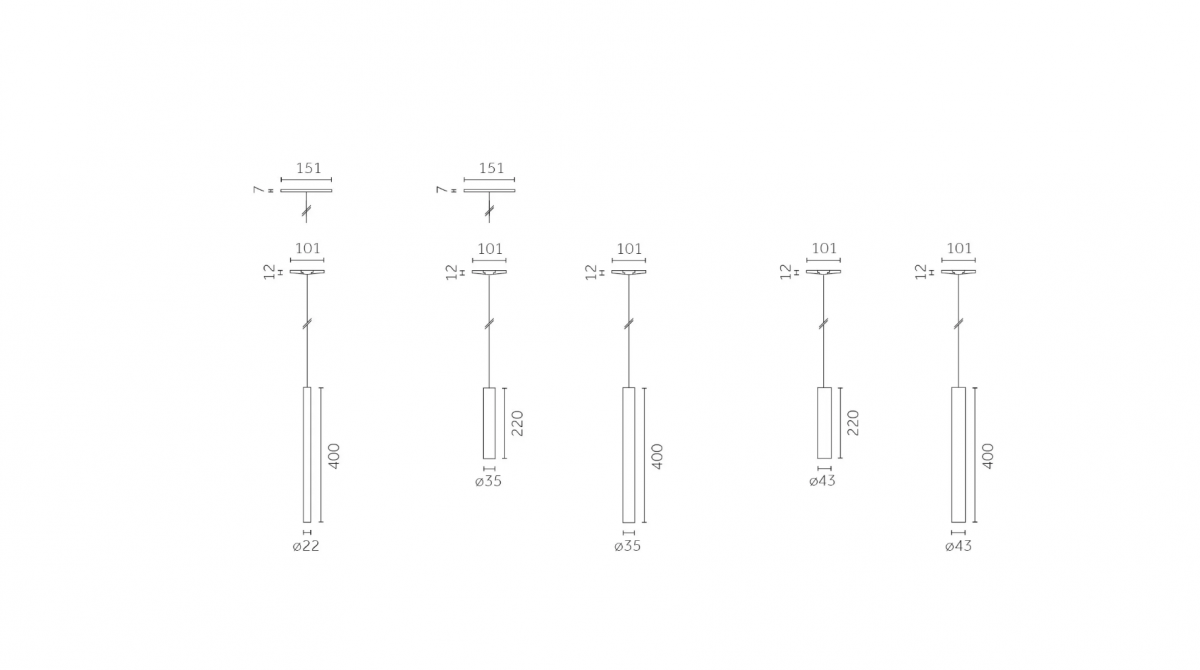

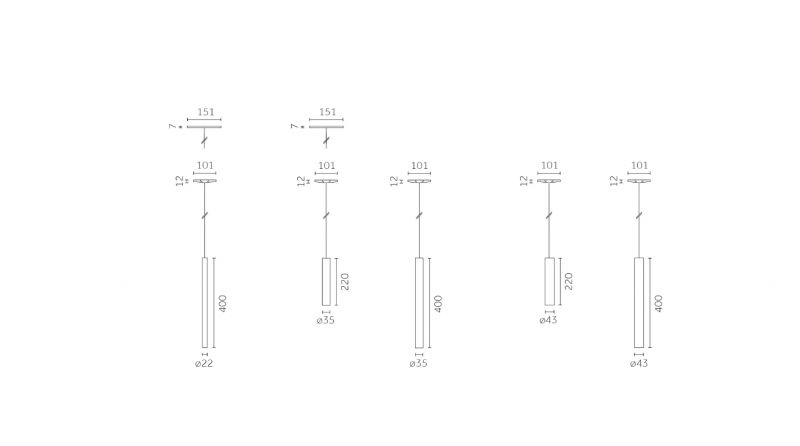

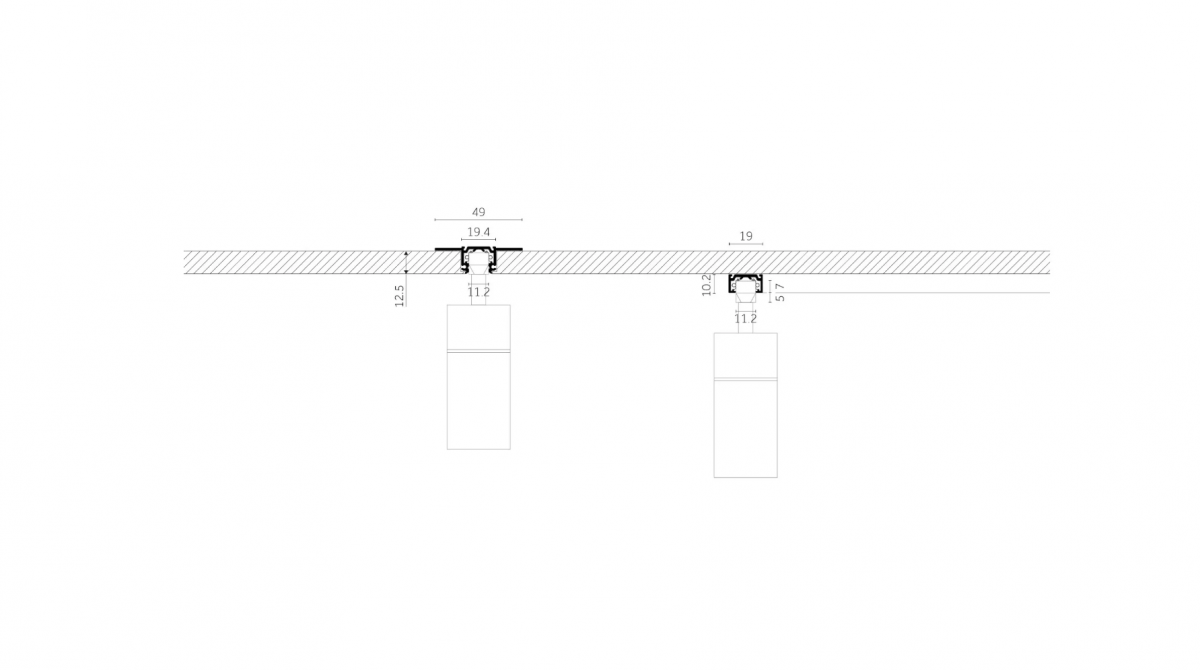

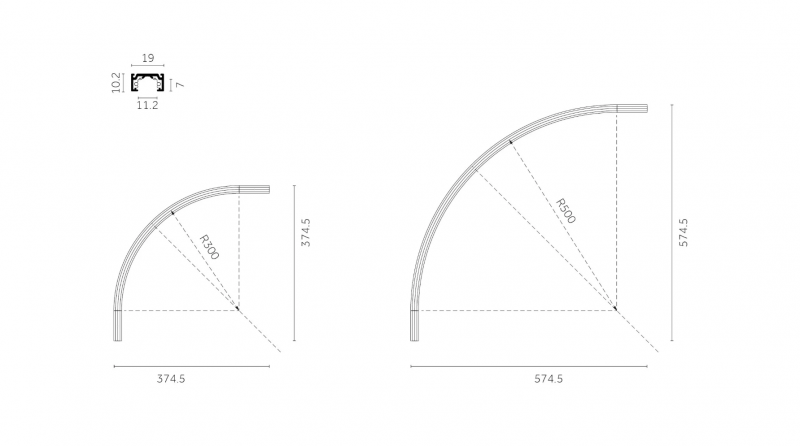

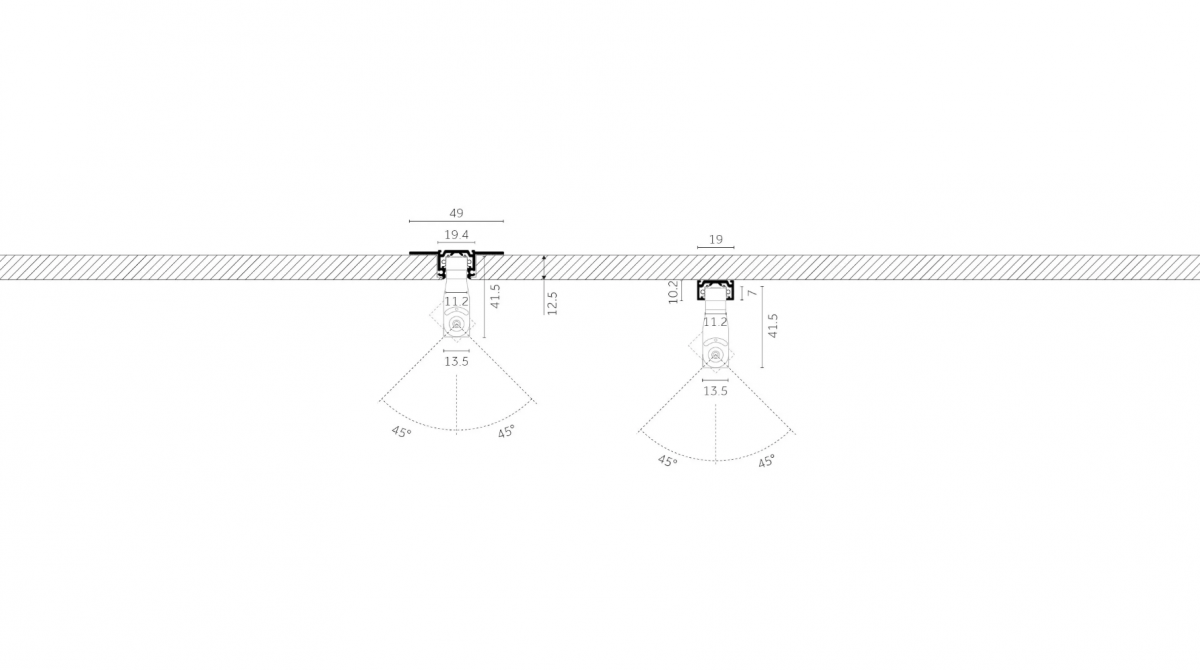

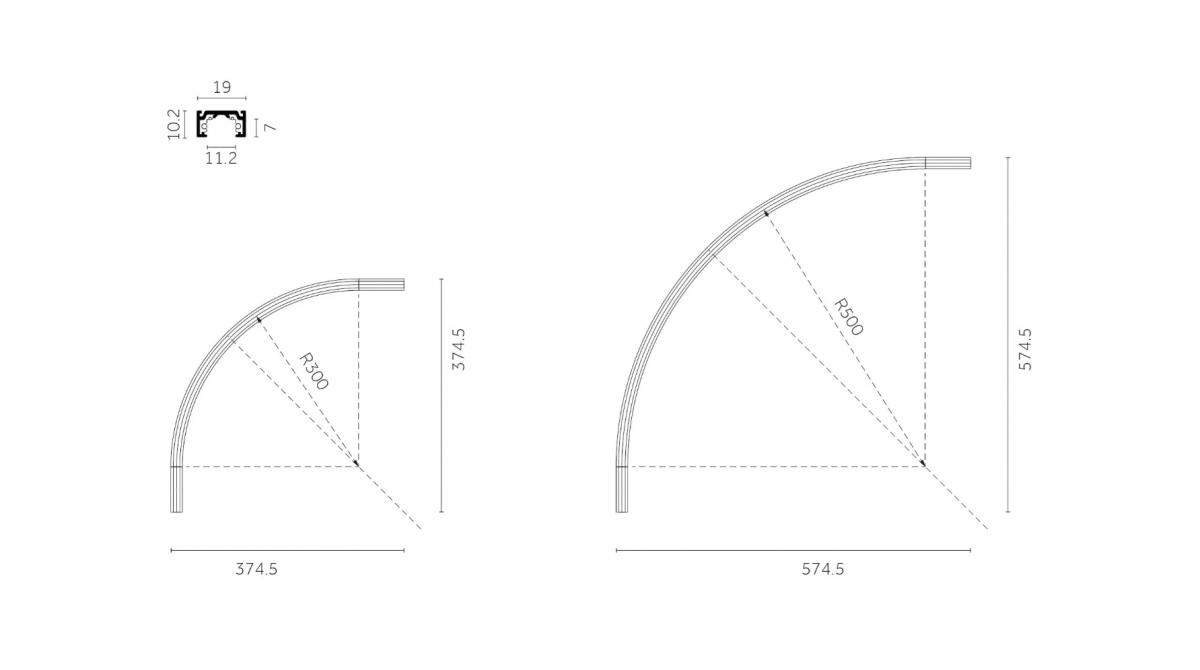

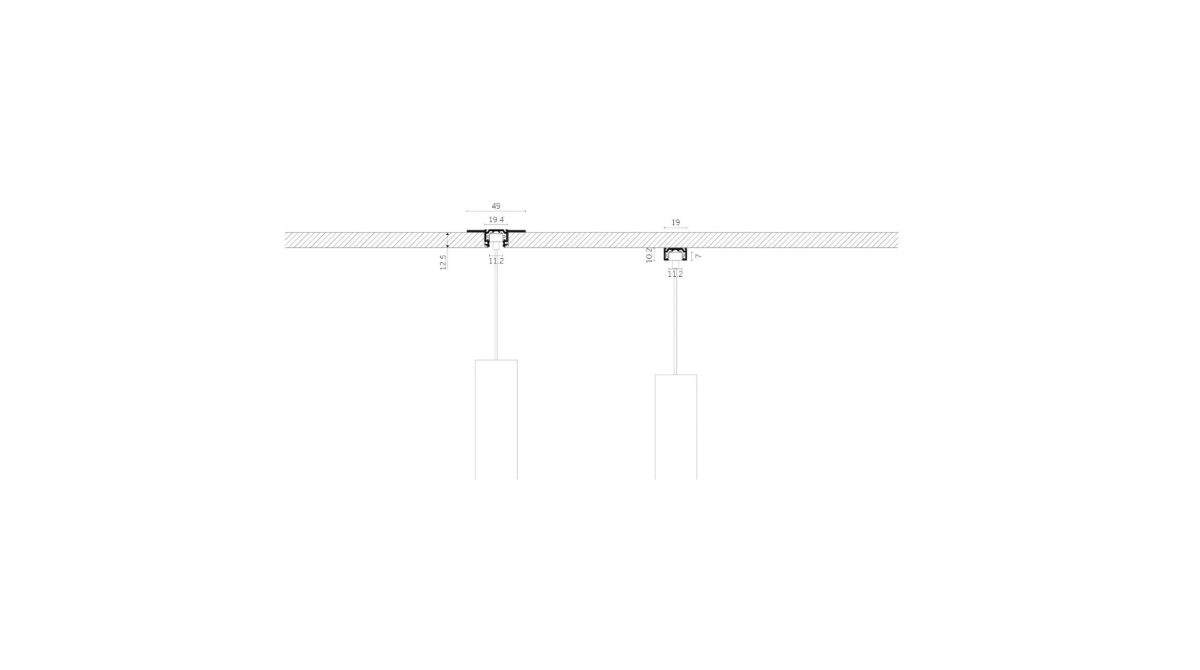

Overall dimensions
Information
An ultra miniaturized system that seamlessly fits in every architectural space. Outline is the new micro track system that can house projectors, pendant lighting fixtures and linear lighting solutions. Where aesthetics and attention to details are fundamental, Outline suits best: projectors and suspensions from ø22 to ø43mm, miniaturized tracks and wide possibilities of configurations, assure high flexibility in only 11mm of width.
Overview

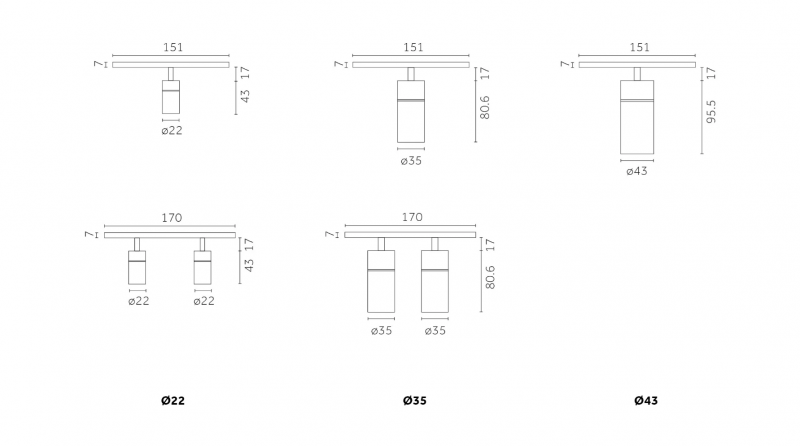

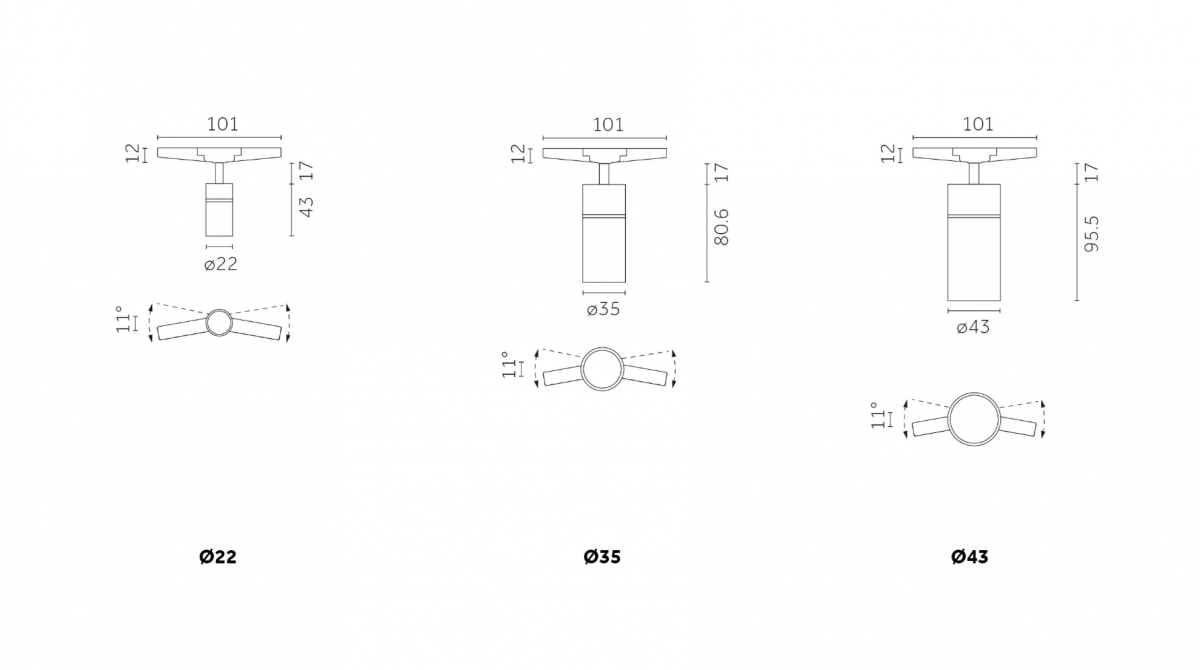

- Yori sizes: ø22mm, ø35mm, ø43mm
- Incline/Linear lengths: from 62,5mm to 125mm (Incline)

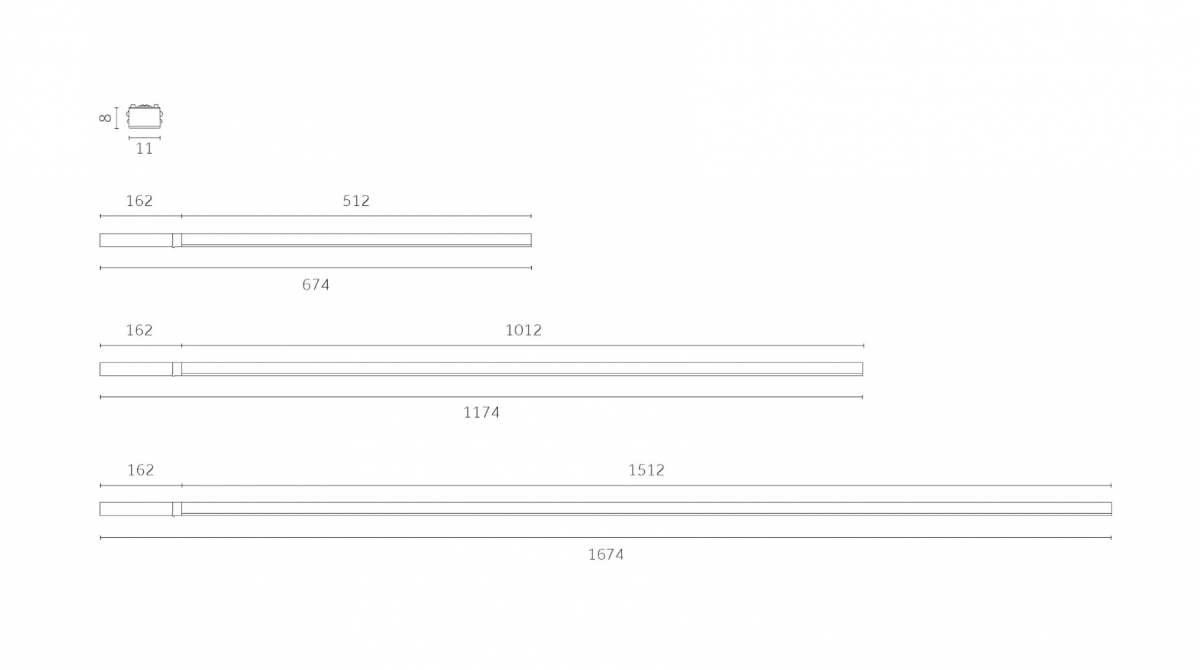

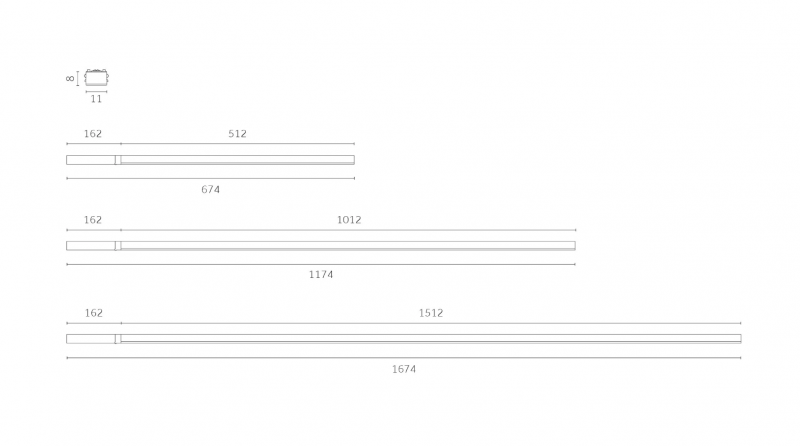

- From 674mm to 1674mm (linear)
- Power: from 2W to 21,5W (Linear)
- Beams: from 8 8°to 115 115°
- Color temperatures: 2700 K, 3000 K, 4000 K CRI>90
- Lumen output: up to 900lm
- Control systems: On/Off, DALI

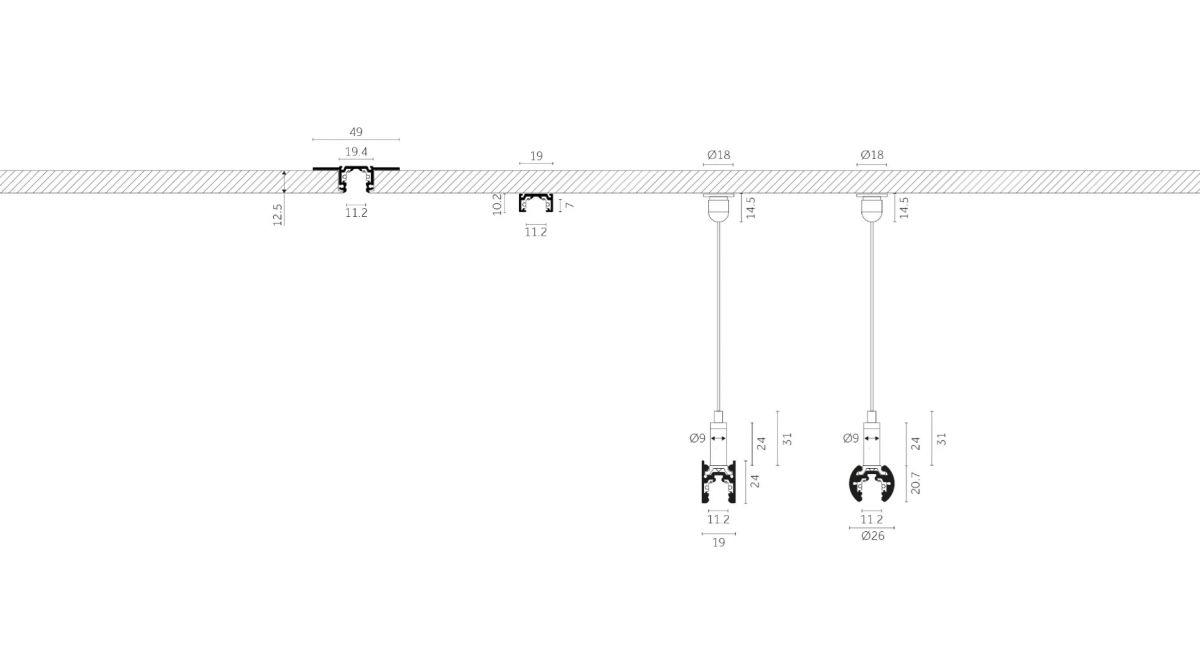

Applications

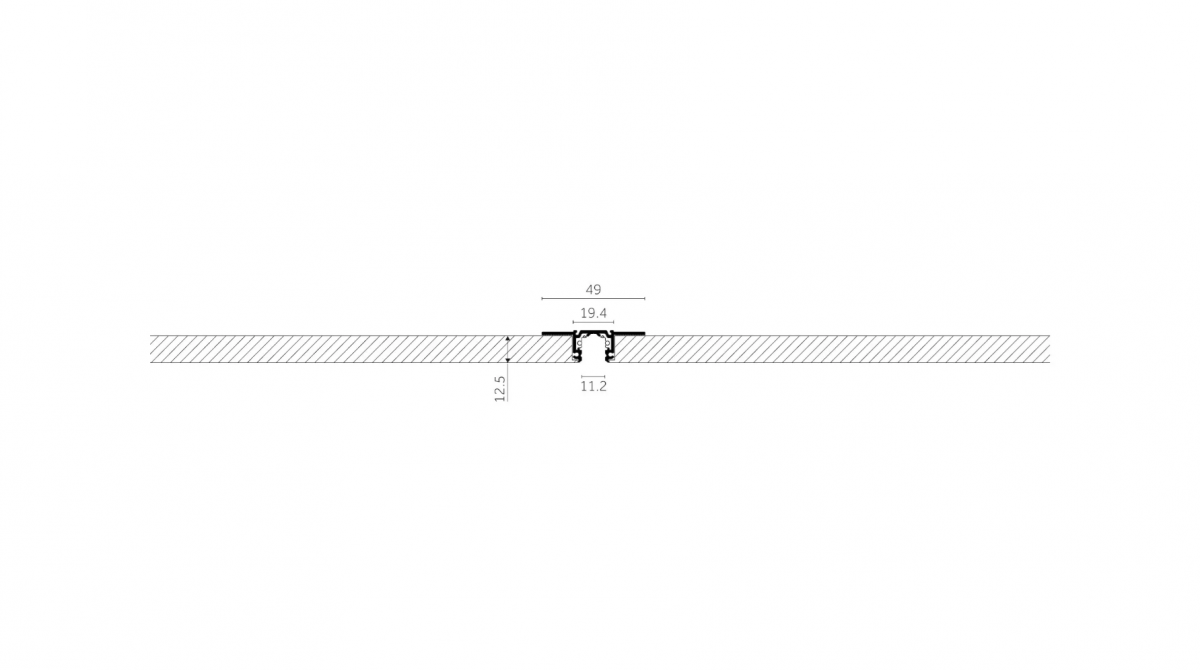

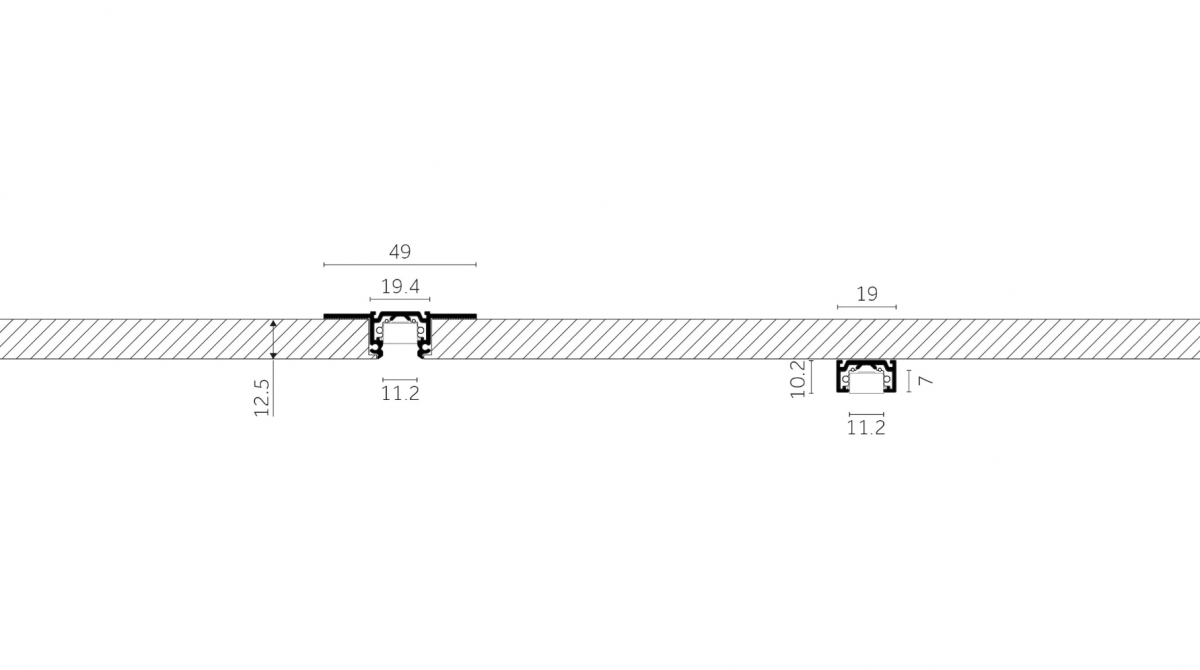

- Recessed
- Surface
- Pendant
- Pendant Round
