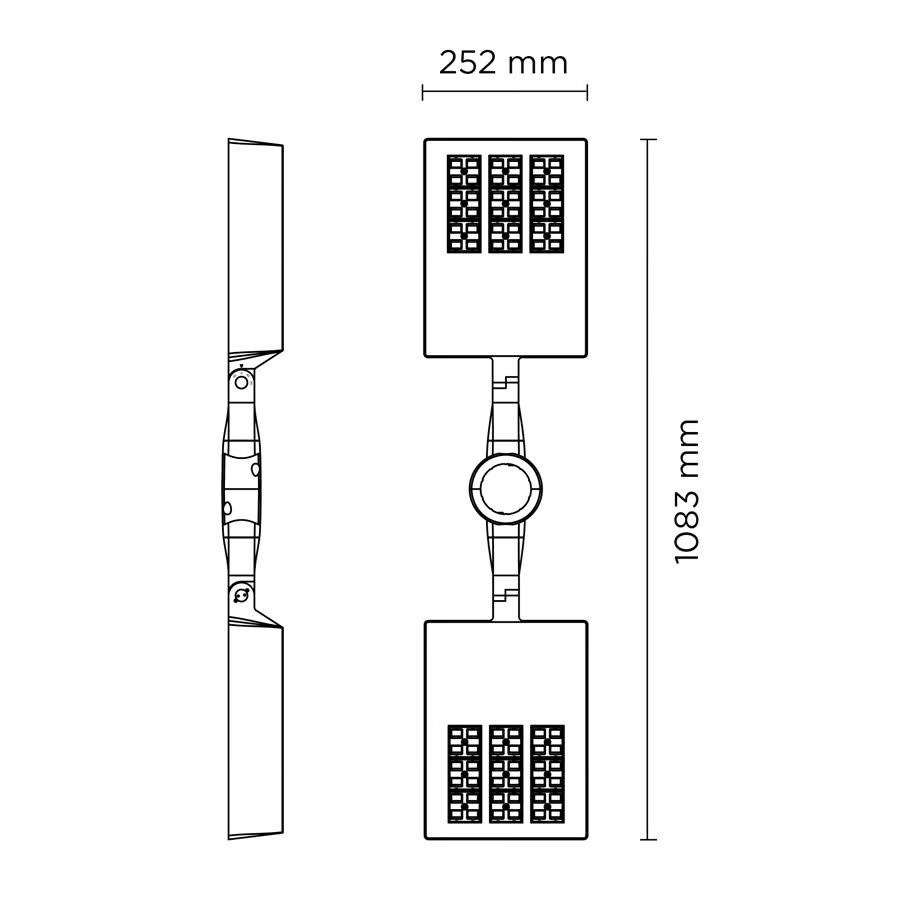

Overall dimensions
Information
Zeus Pole is a LED street lamp in extruded aluminum. Available in different variants.
· Material: High corrosion resistance extruded copper-free aluminum body
· Coating: Polyester powder coating with phosphocromating pre-finish
· Gasket: Silicone rubber
· Electrical power supply 220/240V 50/60Hz built-in
806001-806002 SINGLE ZEUS POLE LED
Square pole mounted floodlight for outdoor installation on a pole diam. 60 mm or 76 mm. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, tempered safety glass, moulded silicone gasket and stainless steel screws. Flange for pole diam. 60 mm or 76 mm included. Built-in LED driver 220-240V 50-60Hz, with 36 or 48 CREE XP-G2 LED. IP66 rating.
806003-806004 DOUBLE ZEUS POLE LED
2 x square pole mounted floodlight for outdoor installation on a pole diam. 60 mm or 76 mm. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, tempered safety glass, moulded silicone gasket and stainless steel screws. Flange for pole diam. 60 mm or 76 mm included. Built-in LED driver 220-240V 50-60Hz, with 2×36 or 2×48 CREE XP-G2 LED. IP66 rating.
