Overall dimensions
Information

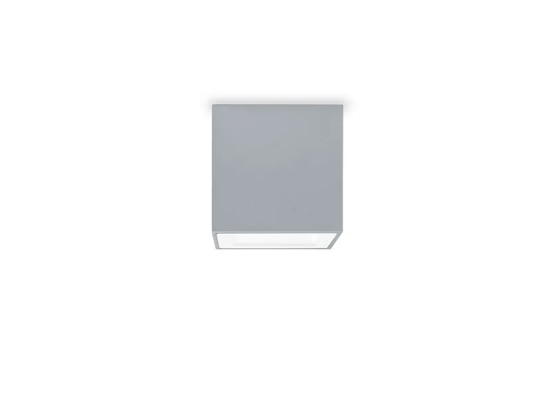

Tag 03 is a Downlight luminaire to be surface mounted on a ceiling, with downward light distribution. Luminaire body is made of extruded copper-free aluminum, secured with die-cast aluminum base, tempered safety glass, moulded silicone gasket and stainless steel screws.
· IK Rating IK08
· Material High corrosion resistance extruded copper-free aluminum body
· Coating Polyester powder coating with phosphocromating pre-finish
· Light source NR. 6 CREE XP-G2 LED
· Screws Stainless steel
· Transformer
· Electronic power supply 220/240V 50/60Hz built-in
· Gasket Silicone rubber
· Power cable 1 mt. neoprene power cable included
· Glass Tempered
· Cable gland M16 rubber grommet
708001 TAG MINI 03 LED 4.5W
Built-in LED driver 220-240V 50-60Hz, with nr. 2 CREE XP-G2 LED. IP65 rating.
708002 TAG MEDIUM 03 LED 8W
Built-in LED driver 220-240V 50-60Hz, with nr. 6 CREE XP-G2 LED. IP65 rating.
