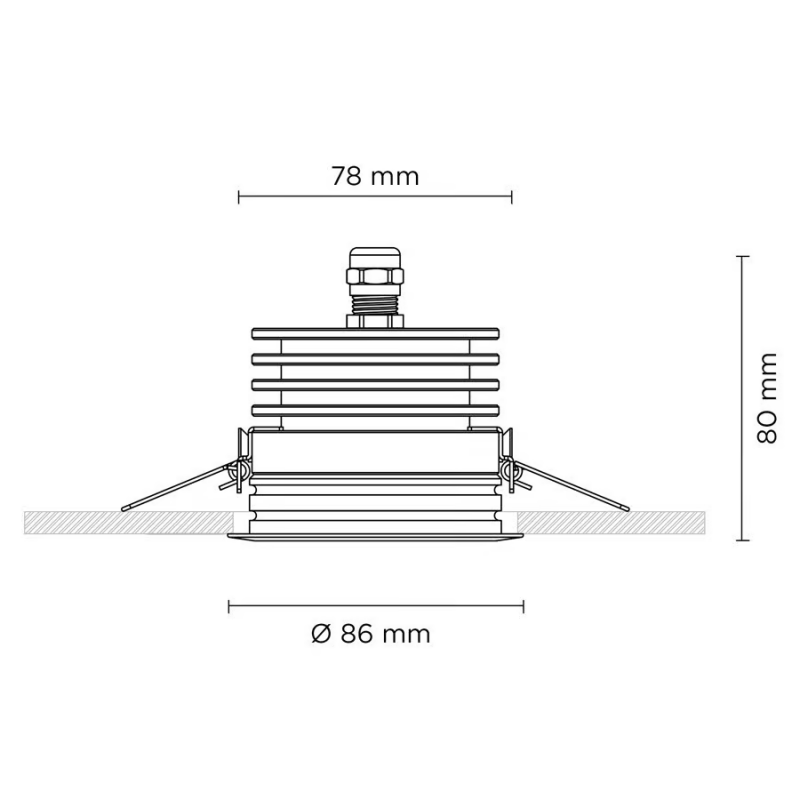

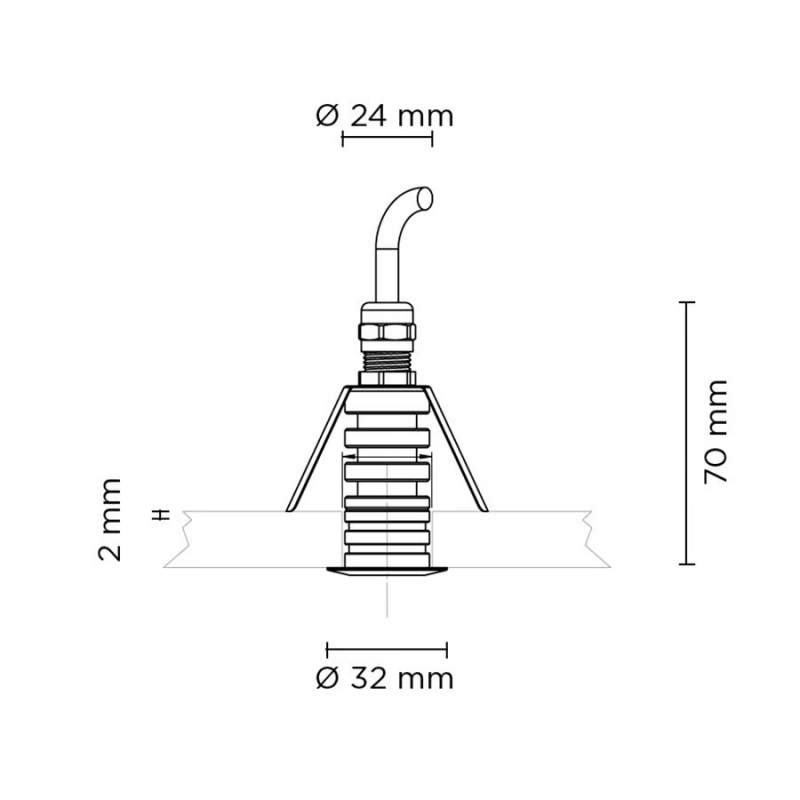

Overall dimensions
Information
Nano Downlight is an outdoor LED spotlight in anodized aluminum. Available in two sizes.
709001 NANO XS DOWNLIGHT LED 2,5 WATT
Round ceiling-recessed luminaire for outdoor installation, hard anodized black aluminium body and stainless steel AISI 316 front trim, tempered safety glass, moulded silicone gasket. Remote constant current max 700 mA driver needed, with 1 CREE XP-L LED. IP68 rating.
· Material: Hard anodized black aluminium body
· Trim: Stainless steel AISI 316 L
· Constant current max 700 mA
· Tempered
709002 NANO DOWNLIGHT LED 10 WATT
Round ceiling-recessed luminaire for outdoor installation, hard anodized black aluminium body and stainless steel AISI 316 front trim, tempered safety glass, moulded silicone gasket. Remote constant current max 700 mA driver needed, with 1 CREE XHP35 HD LED. IP68 rating.
10 WATT
Constant current max 700 mA
0,80 KG GROSS WEIGHT
· Material: Hard anodized black aluminium body
· Trim: Stainless steel AISI 316 L
· Constant current max 700 mA
· Tempered
709003 NANO XXS DOWNLIGHT 1W
Round ceiling-recessed luminaire for outdoor installation, hard anodized black aluminium body and stainless steel AISI 316 front trim, tempered safety glass, moulded silicone gasket. Remote constant current 350 mA driver needed, with 1 CREE XP-G2 LED. IP68 rating.
1 WATT
Constant current 350mA
0,20 Kg Gross weight
· Material Hard anodized black aluminium body
· Trim Stainless steel AISI 316 L
· Light source Nr. 1 CREE XP-G2 LED
· Remote driver Constant current 350 mA
· Gasket Silicone rubber
· Glass Tempered
· Cable gland M12
· Power cable 1 mt. neoprene power cable included
