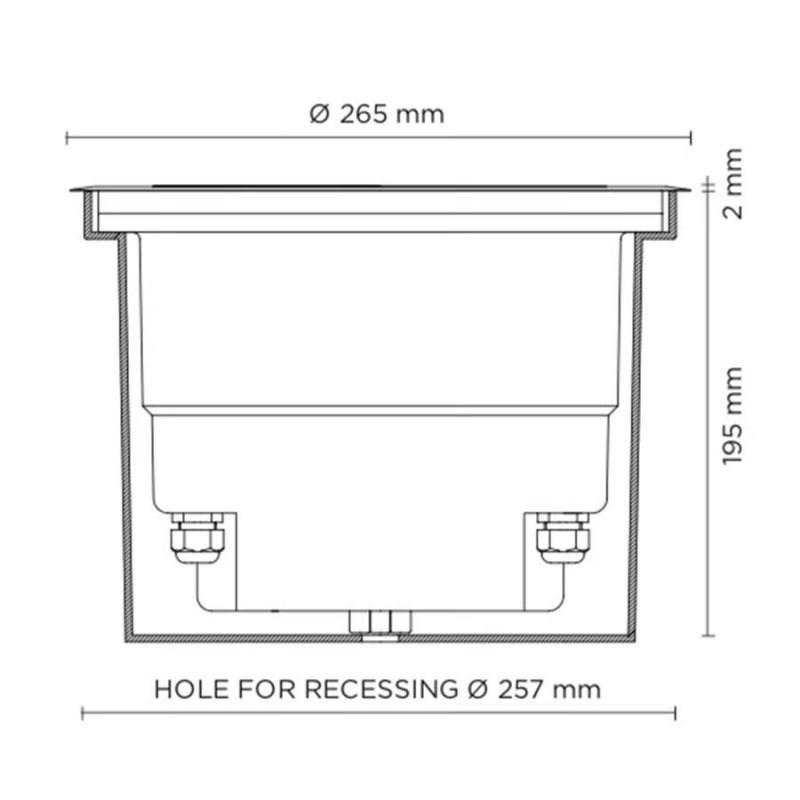

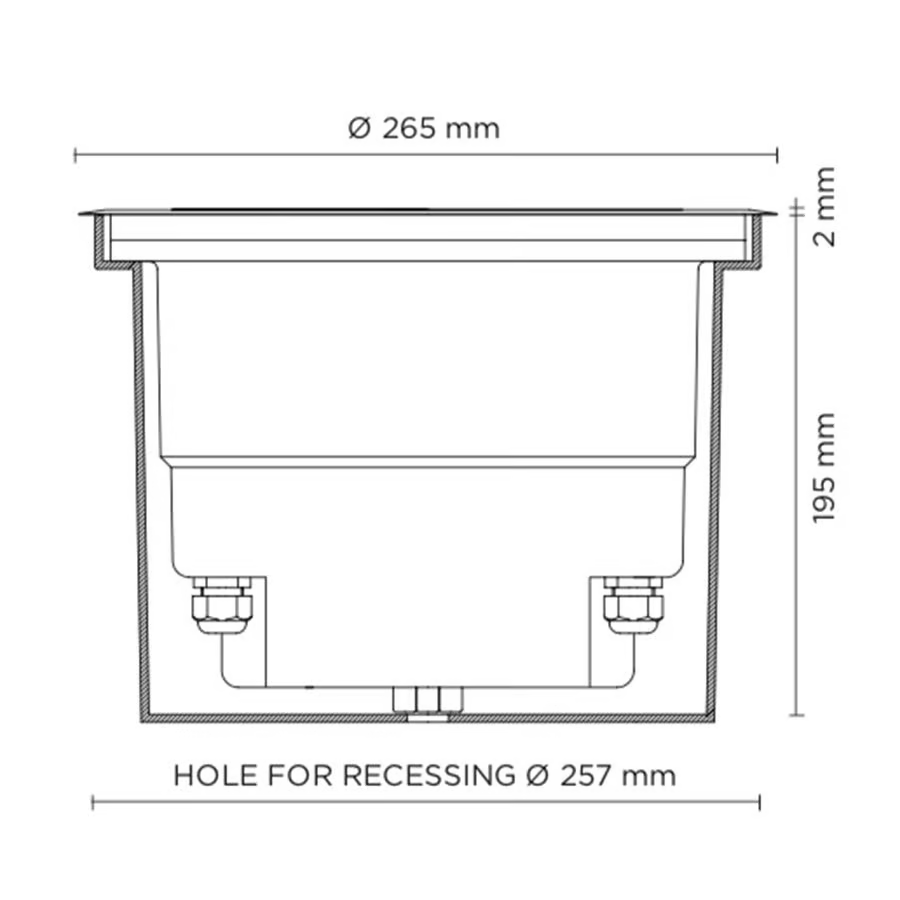

Overall dimensions
Information
Ground-recessed luminaire in round shape for outdoor installation, phospho-chromatised and polyester powder coated die-cast copper-free aluminium body and stainless steel AISI 304 frame, tempered safety glass, moulded silicone gasket.
201068RGBW HYDROFLOOR MEDIUM DMX RGBW
Built-in LED driver, DMX driver integrated
with 3 x CREE “XML” RGBW LED. IP67 rating. 14 WATT
DMX INTERFACE
220-240V POWER SUPPLY INTEGRATED
· Material High corrosion resistance die-cast copper-free aluminum body
· Trim Stainless steel AISI 304
· Coating Polyester powder coating with phosphocromating pre-finish
· Light source 3 x CREE “XML” COLOR RGBW LED
· Screws Stainless steel
· DMX interface integrated
· Transformer Electronic power supply 220/240V 50/60Hz built-in
· Gasket Silicone rubber
· Glass Tempered
· Power cable 1 mt. neoprene power cable included
· DMX cable DMX IN cable included
201034RGBW HYDROFLOOR MAXI DMX RGBW
Built-in LED driver, DMX driver integrated
with 6 x CREE “XML” RGBW LED. IP67 rating. 28 WATT
DMX INTERFACE
220-240V POWER SUPPLY INTEGRATED
· Ground-recessed luminaire in round shape for outdoor installation, phospho-chromatised and polyester powder coated die cast copper-free aluminium body and stainless
· steel AISI 304 frame, tempered safety glass,
· moulded silicone gasket. Built-in LED driver,
· DMX driver integrated
with 6 x CREE “XML”
· RGBW LED.
· IP67 rating.
