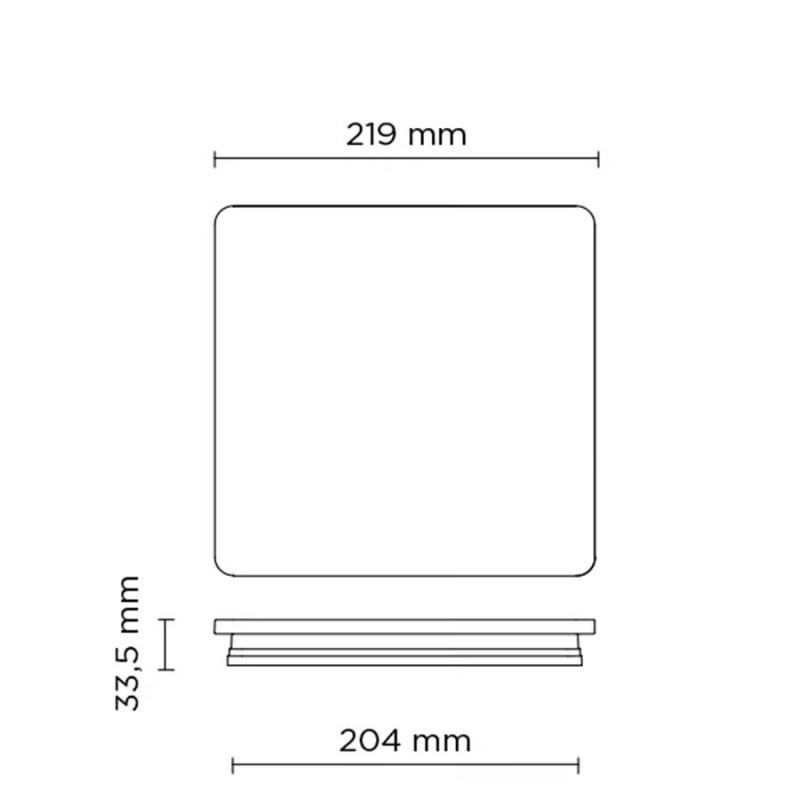

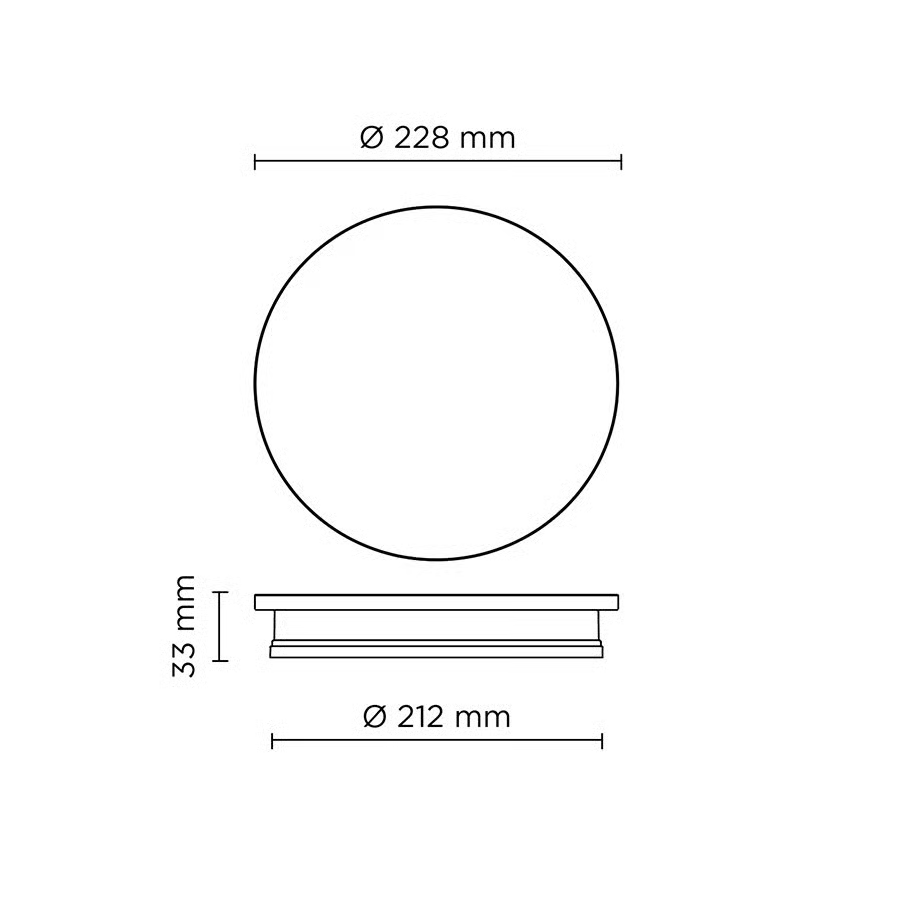

Overall dimensions
Information

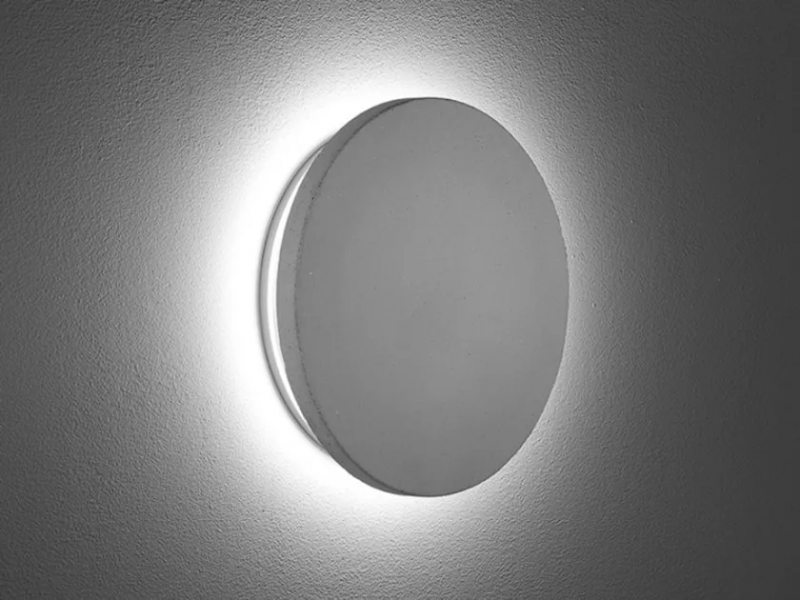

Eclipse Concrete is a LED cement outdoor wall lamp. Available in round and square version.
· IK Rating IK08
· Material High corrosion resistance die-cast copper-free aluminum body, cover in concrete material
· Coating Polyester powder coating with phosphocromating pre-finish
· Light source Low-power CREE LED
· Screws Stainless steel
· Transformer
· Electronic power supply 220/240V 50/60Hz built-in
· Gasket Silicone rubber
· Rubber grommet M16 Rutaseal® in EPDM
· Diffuser Polycarbonate
401712 ECLIPSE MEDIUM SQUARE CONCRETE LED 14W
Square wall surface-mounted luminaire creating a diffused and discrete light through the fixture perimeter on the wall. Fixture for outdoor installation on a wall. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, cover in concrete material
frosted polycarbonate diffuser, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 50-60Hz, with low-power CREE LED. IP65 rating.
401711 ECLIPSE MEDIUM ROUND CONCRETE LED 12W
Round wall surface-mounted luminaire creating a diffused and discrete light through the fixture perimeter on the wall. Fixture for outdoor installation on a wall. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, cover in concrete material
frosted polycarbonate diffuser, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 50-60Hz, with low-power CREE LED. IP65 rating.
