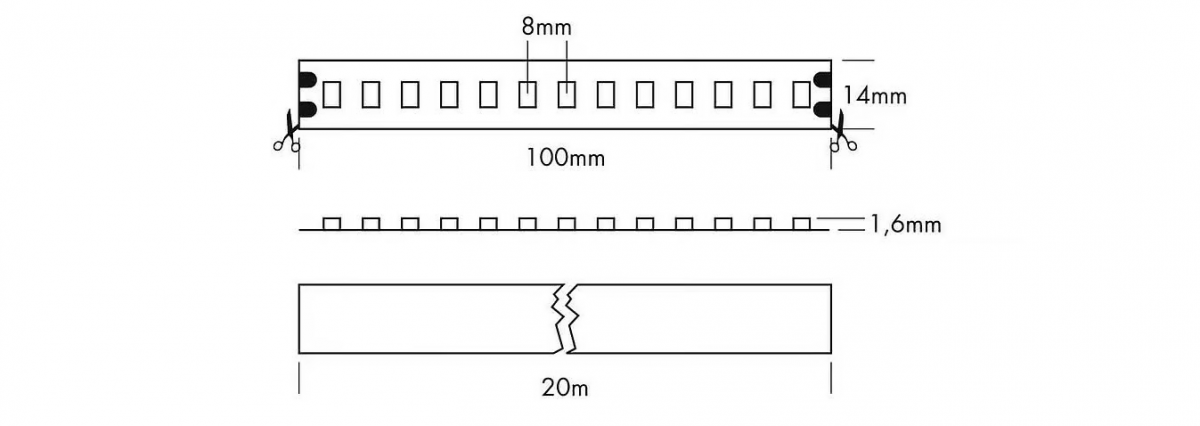

Overall dimensions
Information

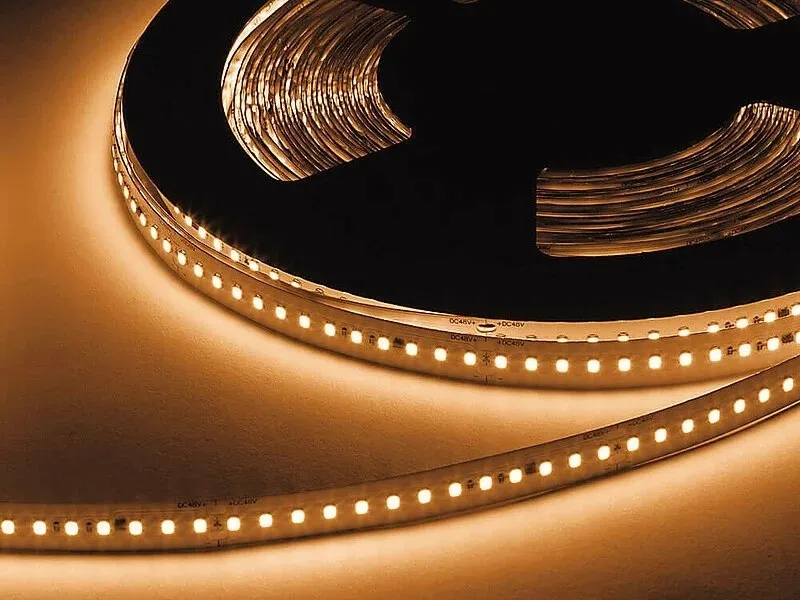

All the advantages of the Flex Strips extended up to 20 m long. The PROLED Flex Strip Xtend Mono is perfect when you have large rooms and long walls to illuminate with continuous light quality.
- Excellent light quality and colour rendering, and – thanks to 48-volt technology – uniform dimming over the entire length
- Perfect for halls, corridors and long walls
- Suitable as ambient lighting, orientation and accent lighting
- Only one power feed needed for a length of 20 m
- Significantly reduced installation effort
- Dimmable with suitable PWM dimmers
TECHNICAL DATA
IP20
Power source 48 VDC
Electrical connection 2x cable to open wires
2-pin
30 cm
Maximum quantity per power input 20 m
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +45° C
Width x height 14 x 1,6 mm
min. Bending radius 20 mm
Cuttable all 13 LEDs (10 cm)
PHOTOMETRIC DATA
LED type SMD LEDs
Luminous flux
white (6000 K) 1600 Lumen per m
neutral white (4000 K) 1500 Lumen per m
warm white (3000 K) 1450 Lumen per m
super warm white (2700 K) 1400 Lumen per m
CRI90
Beam angle 120°
