Information

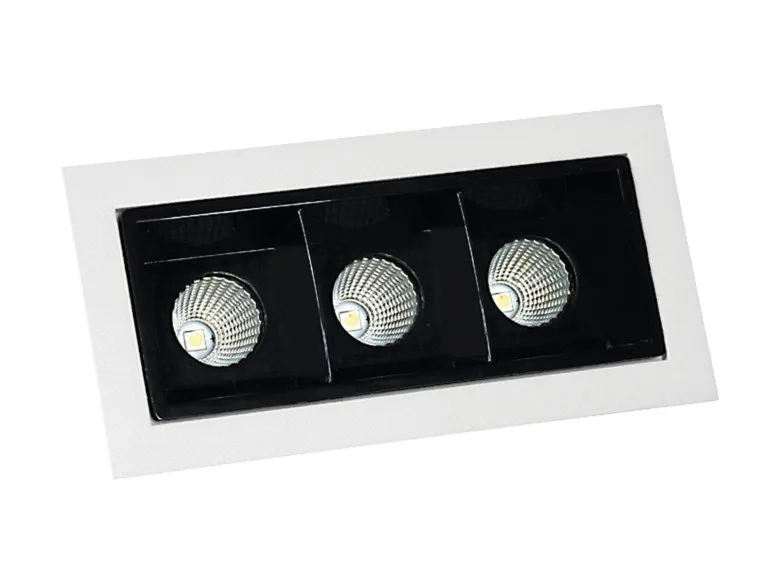

XLINE Axxent Built-In is a design recess spot with ultra powerful Osram LEDs placed in a very compact reflector giving a unique architectural result.
TECHNICAL DATA
IP classification IP20
Power source constant current 700 mA / 9 V
Housing white-black
Driver 700 mA / 9 V (optional)
Electrical connection 1x cable with 2-PIN to open wires (with connector for easy installation)
Average lifetime 40.000 h at L80/B10
Operating temperature range -10° C till +45° C
PHOTOMETRIC DATA
LED type OSRAM - OSLON SQUARE 2 Watt
Luminous flux
XLINE Axxent 3 Built-In: warm white 600 Lumen
XLINE Axxent 5 Built-In: warm white 1000 Lumen
Colour temperature warm white 3000 K
CRI90
Beam angle 50°
