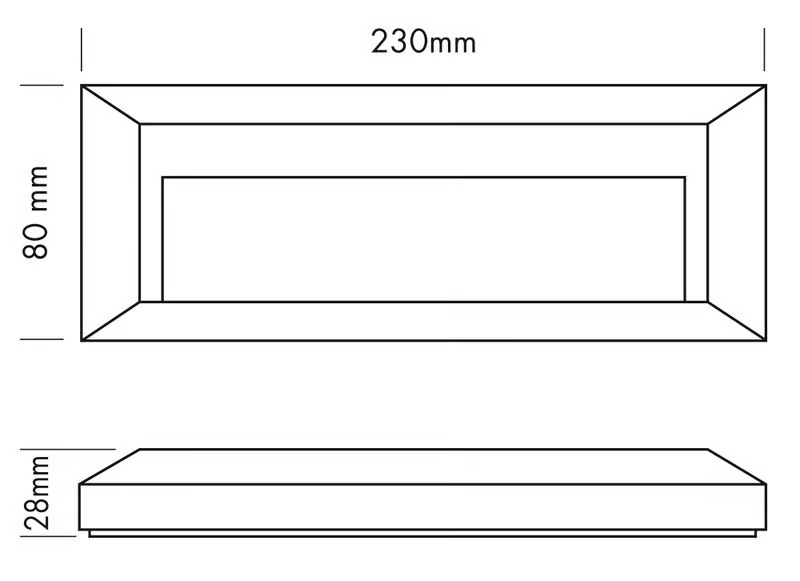

Overall dimensions
Information

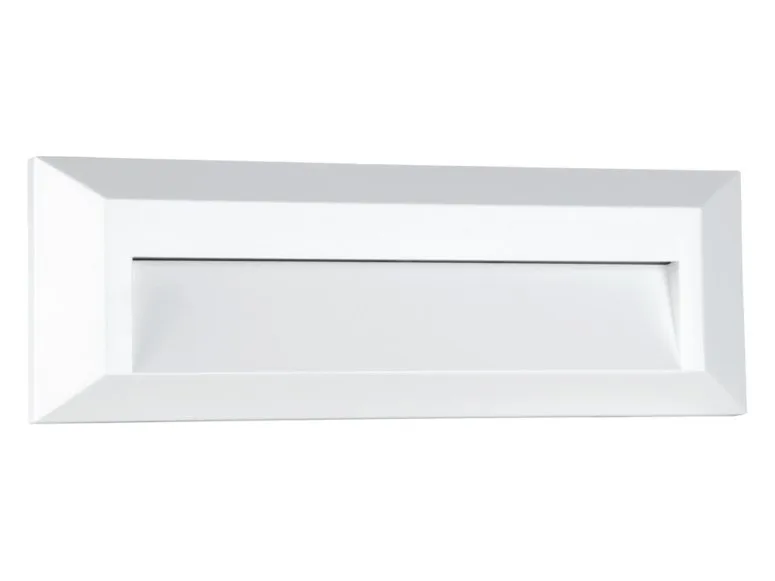

The PROLED WALL LIGHT SURF series is designed for wall mounting and offers various design possibilities in architectural illumination.
TECHNICAL DATA
IP classification IP65 (for outdoor use)
Power source 240 VAC 50 Hz
Housing plastic (UV stabilized), white, grey and black
Electrical connection screw terminal
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +45° C
PHOTOMETRIC DATA
LED type SMD LEDs
Luminous flux
housing white:
warm white 100 Lumen
housing grey:
warm white 65 Lumen
housing black:
warm white 50 Lumen
Colour temperature warm white 3000 K
CRI80.
