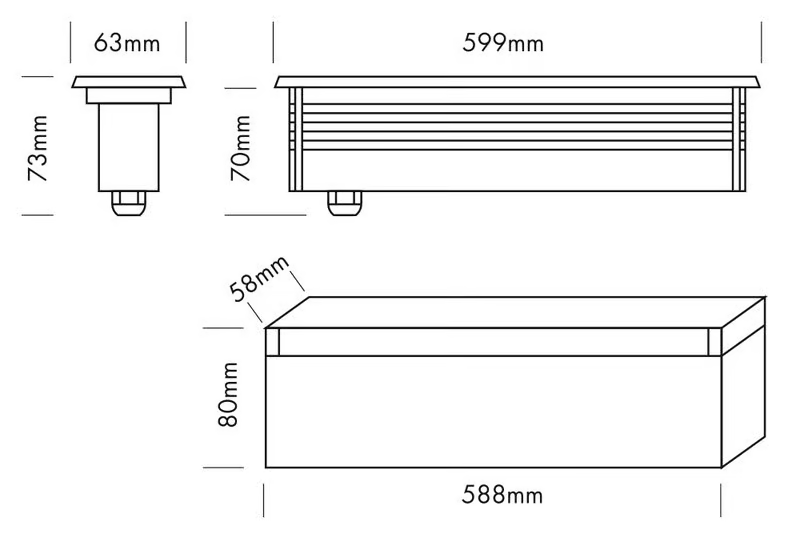

Overall dimensions
Information

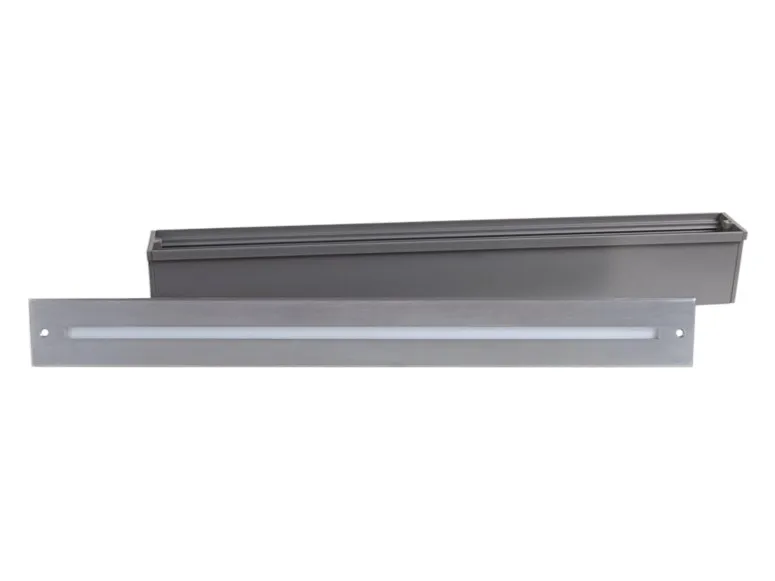

The PROLED WALL LIGHT REC series is designed for wall or step integration and offers various design possibilities in architectural illumination.
Dimmable and controllable via DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF by MULTI power supplies or PRO CONTROLLER
Incl. powder coated aluminium mounting sleeve grey.
TECHNICAL DATA
IP classification IP65 (for outdoor use)
Power source 24 VDC
Frame stainless steel 316
Housing powder coated aluminium grey, 6 mm tempered glass
Mounting sleeve powder coated aluminium grey
Electrical connection 1x cable 0,5 m H05RN-F 2x 1,0 mm² to open wires
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +45° C
PHOTOMETRIC DATA
LED type SMD LEDs ULTRA BRIGHT (3-in-1)
Luminous flux
white 70 Lumen
warm white 70 Lumen
Colour temperature
white 6000 K
warm white 3000 K
CRI
white 80
warm white 60
Beam angle 120°
