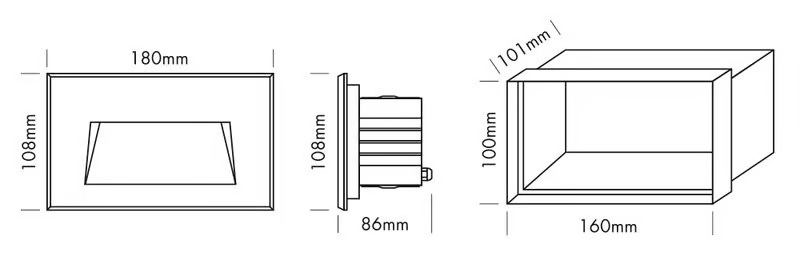

Overall dimensions
Information

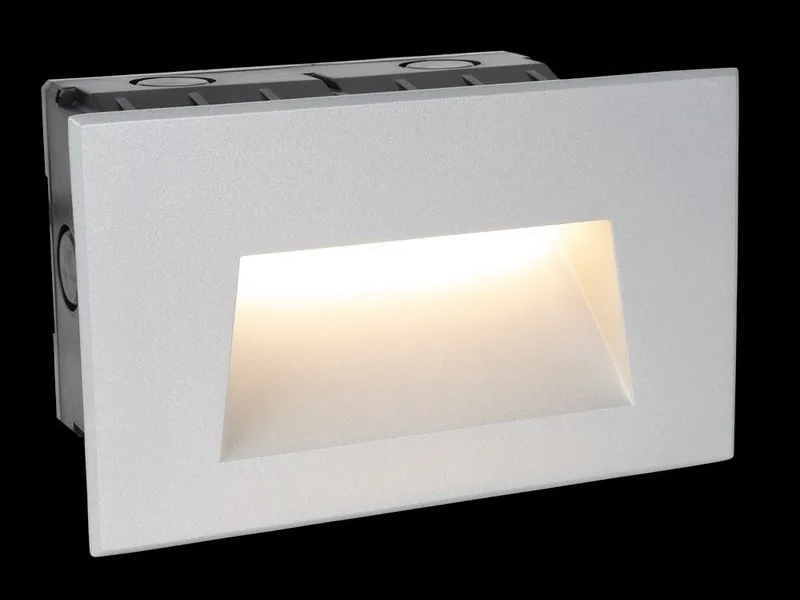

The PROLED WALL LIGHT REC series is designed for wall or step integration and offers various design possibilities in architectural illumination.
Incl. ABS plastic mounting sleeve.
TECHNICAL DATA
IP classification IP65 (for outdoor use)
Power source 220-240 VAC 50/60 Hz
Housing powder coated aluminium silver or white
Mounting sleeve ABS plastic
Electrical connection 1x cable 0,5 m H05RN-F 3x 1,0 mm² to open wires
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +45° C
PHOTOMETRIC DATA
LED type SMD LEDs
Luminous flux
housing silver:
warm white 150 Lumen
housing white:
warm white 190 Lumen
Colour temperature warm white 3000 K
CRI80
