Overall dimensions
Information

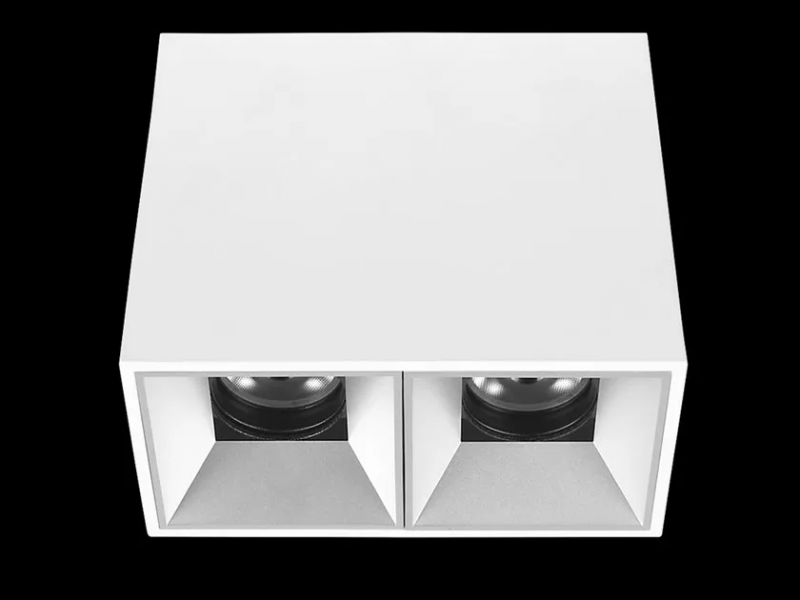

Performance Cubo Duo is a LED multiple ceiling powder coated aluminium spotlight.
TECHNICAL DATA
IP40
Power source 220-240 VAC 50/60 Hz
Housing powder coated aluminium black or white
Driver including (2x 350 mA / 32 V)
Electrical connection 3x WAGO connector
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +45° C
Dimmable no
PHOTOMETRIC DATA
6 reflectors
UGR < 10
2 beam angles
LED type BRIDGELUX (2x COB)
Luminous flux
warm white 2100 Lumen
Colour temperature
warm white 3000 K
CRI90
Beam angle 25° and 33°
