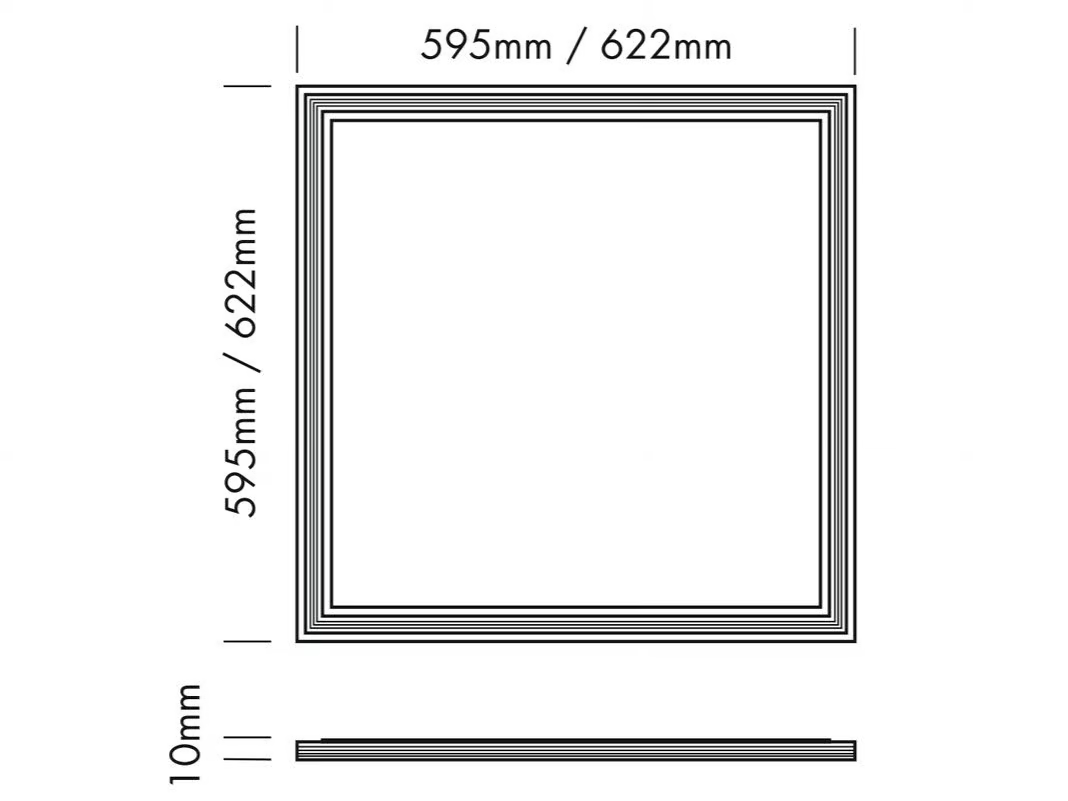

Overall dimensions
Information

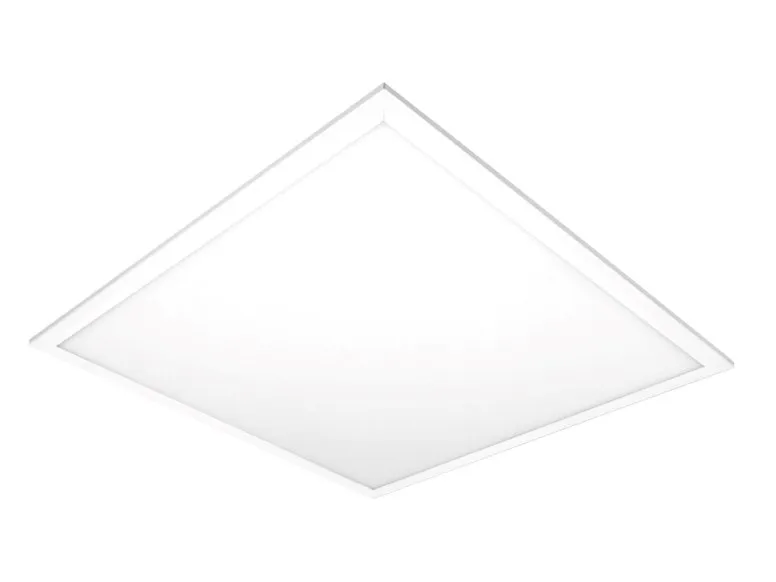

Panel RGBW is a LED dimmable RGB Lamp for false ceiling.
Slim RGBW LED PANEL for grid ceiling 600 x 600 mm and 625 x 625 mm, dimmable, autom. colour change, controllable via DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF by MULTI power supplies/controller. For wall or ceiling mounting (with optional mounting bracket)
for suspension (with optional suspension set).
TECHNICAL DATA
IP classification IP40
Power source 24 VDC Common Anode (CA)
Housing metal frame white, panel PMMA white opal
Driver 4-channel PWM dimmer (optional)
Electrical connection 1x cable with 5-PIN to open wires (with connector for easy installation)
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +45° C
PHOTOMETRIC DATA
LED type SMD LEDs
Luminous flux
red 250 Lumen
green 850 Lumen
blue 200 Lumen
white 3300 Lumen
r+g+b+w 4300 Lumen
Wave length
red 620 nm
green 530 nm
blue 470 nm
Colour temperature neutral white 4000 K
CRI80
Beam angle 120°
