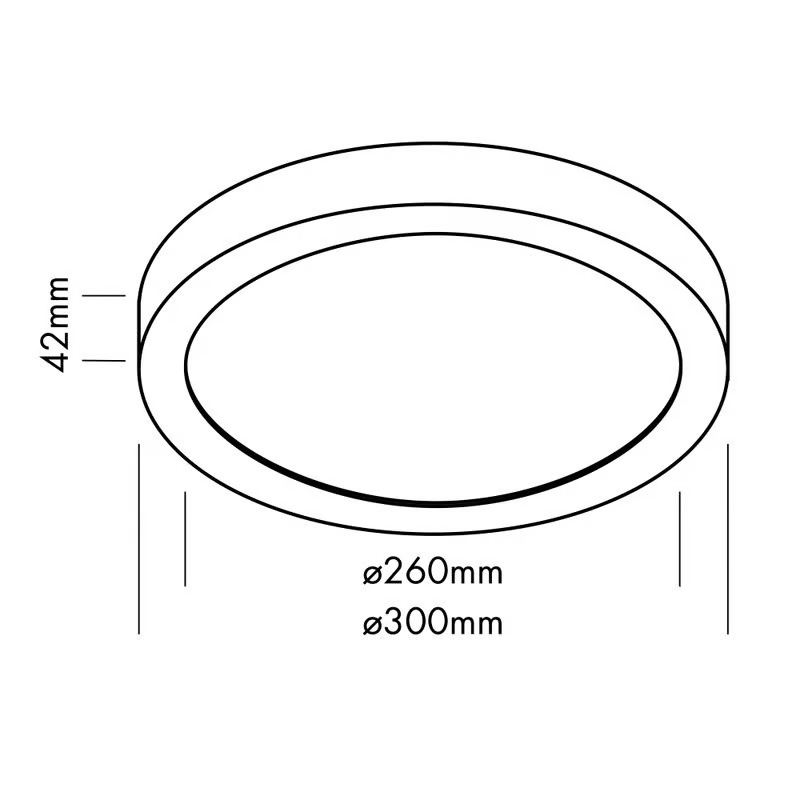

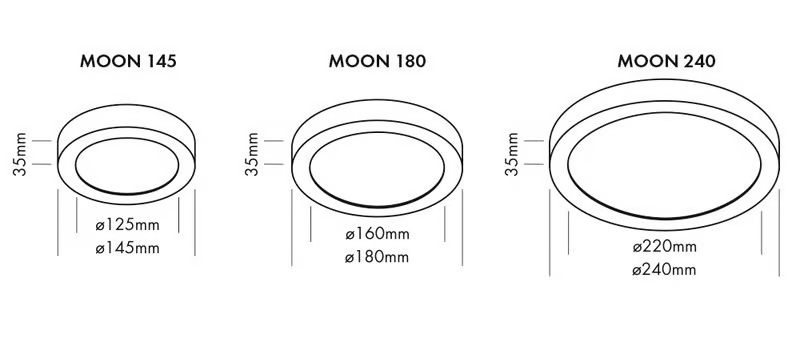

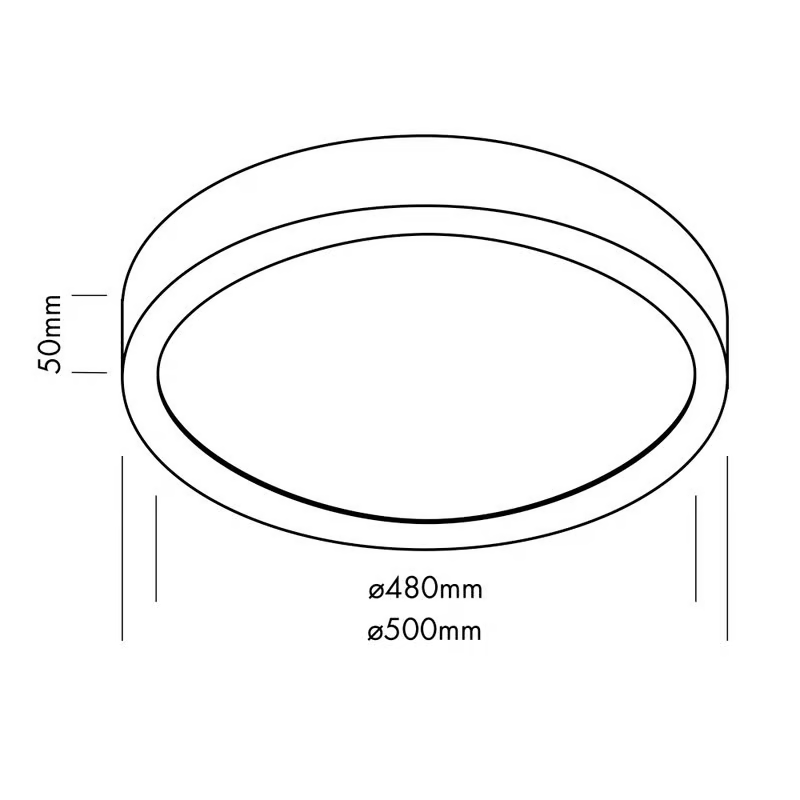

Overall dimensions
Information

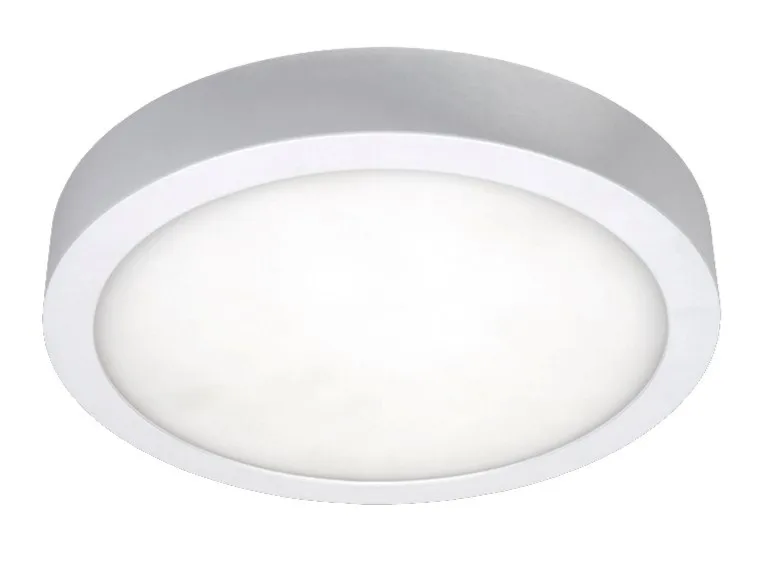

Moon is a multi-purpose surface mounted LED light in a high quality matt white or black finish, whitout any visible screws. Quick and easy installation. Up to 70 % energy saving.
TECHNICAL DATA
IP54
Power source 220-240 VAC 50/60 Hz
Housing aluminium frame matt white or black, panel PMMA white opal
Driver including
MOON 145: 220 mA
MOON 180 + 240: 350 mA
MOON 300: 600 mA
MOON 500: 900 mA
Electrical connection 3-PIN terminalblock
Average lifetime 40.000 h at L80/B10
Operating temperature range -10° C till +45° C
Dimmable no
PHOTOMETRIC DATA
SMD LEDs SAMSUNG
Luminous flux
MOON 145: 750 Lumen
MOON 180: 1300 Lumen
MOON 240: 1800 Lumen
MOON 300: 2300 mA
MOON 500: 3100 mA
Colour temperature warm white 3000 K
CRI 80
Beam angle 110°
