Information

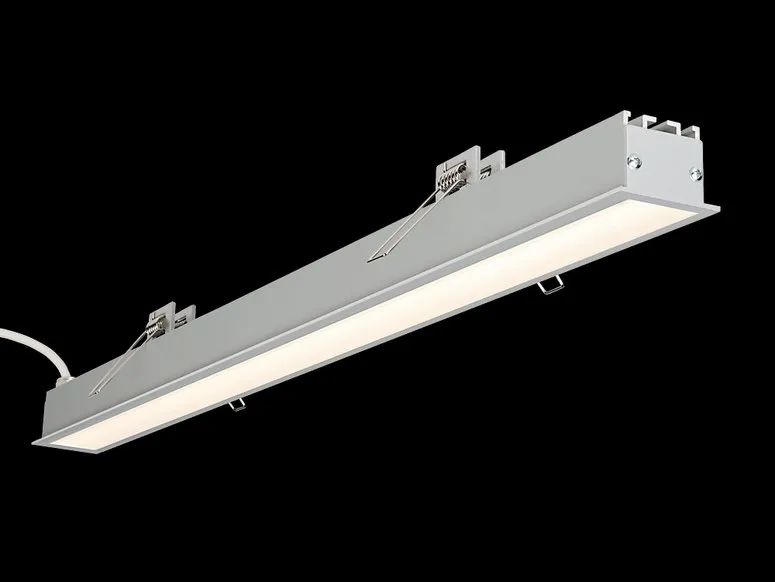

The LINEAR CEILING M luminaire is designed for suspended ceilings (especially for grid ceilings).
- homogenous light line with high luminous transmittance due to plastic cover frost (semitransparent)
- 3 colours: aluminium silver, white and black
- 4 colour temperatures: white (6000 K), neutral white (4000 K), warm white (3000 K) and super warm white (2700 K)
- easy installation with spring mounting clips
TECHNICAL DATA
IP classification IP20
Power source 24 VDC
Electrical connection 1x cable 50 cm 2x 0,75 mm² with male MINI connector
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +45° C
Dimensions (l x w x h) 480 x 35 x 31,5 mm (height without cable connection and spring mounting clip)
Weight 0,4 kg
PHOTOMETRIC DATA
LED type SMD LEDs 5630/5730
Luminous flux
white 730 Lumen
neutral white 730 Lumen
warm white 680 Lumen
super warm white 680 Lumen
Colour temperature
white 6000 K
neutral white 4000 K
warm white 3000 K
super warm white 2700 K
CRI90
Beam angle 120°
