Jay

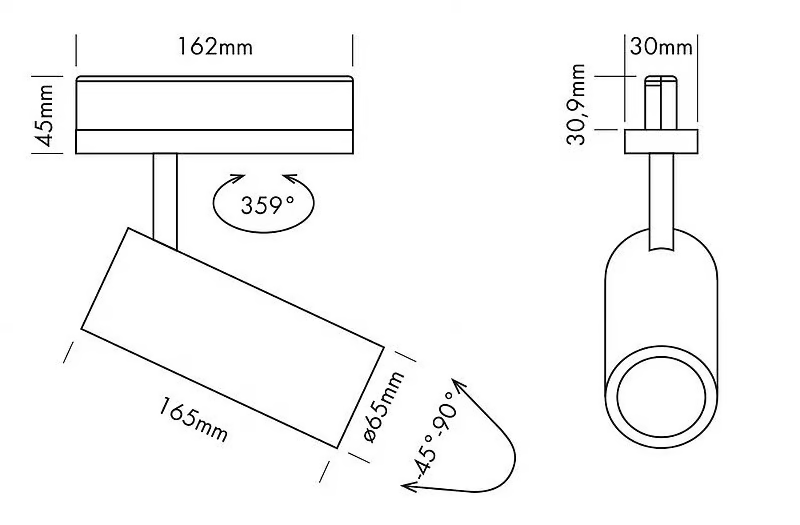

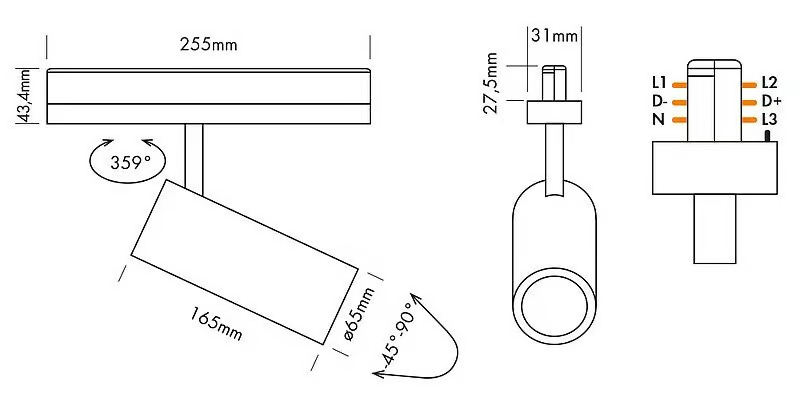

Jay is an aluminum LED track light. The flexible spotlight directs all attention to its surroundings, routinely unfolds its lighting effect and remains unobtrusively in the dark. The allrounder with a license for good light fulfills its mission reliably and unobtrusively – with professional understatement. Tracklight / standard spot for 3-phase tracks and all applications from residential to commercial Slim, elegant and unobtrusive Flexible, rotatable, pivotable, free positionable Different beam angles Compatible with 3-phase track systems from Global, PowerGear, IVELA and STUCCCHI. Compatibility for other systems on request. TECHNICAL DATA IP classification IP20 Power source 220 - 240 VAC 50-60 Hz Housing aluminium white or black Electrical connection 3-phase track/DALI track Average lifetime 50.000 h at L80/B10 Operating temperature range -10° C till +45° C PHOTOMETRIC DATA LED type BRIDGELUX Luminous flux Jay 55 15 Watt/Jay 55 DALI 15 Watt neutral white 1500 Lumen warm white 1400 Lumen super warm white 1300 Lumen Jay 55 20 Watt/Jay 55 DALI 20 Watt neutral white 2000 Lumen warm white 1900 Lumen super warm white 1800 Lumen Jay 65 32 Watt/Jay 65 DALI 32 Watt neutral white 3200 Lumen warm white 3000 Lumen super warm white 2800 Lumen Colour temperature neutral white 4000 K warm white 3000 K super warm white 2700 K CRI90 Beam angle 20°, 32°, 40° and 55°
