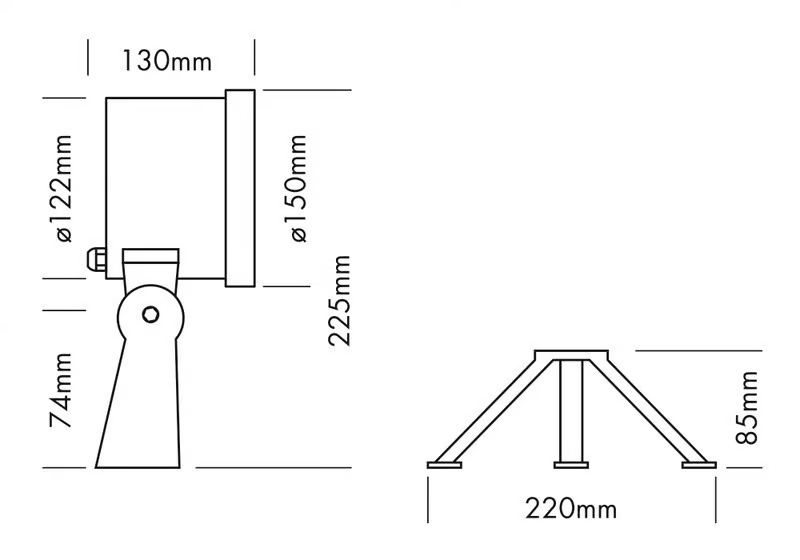

Overall dimensions
Information

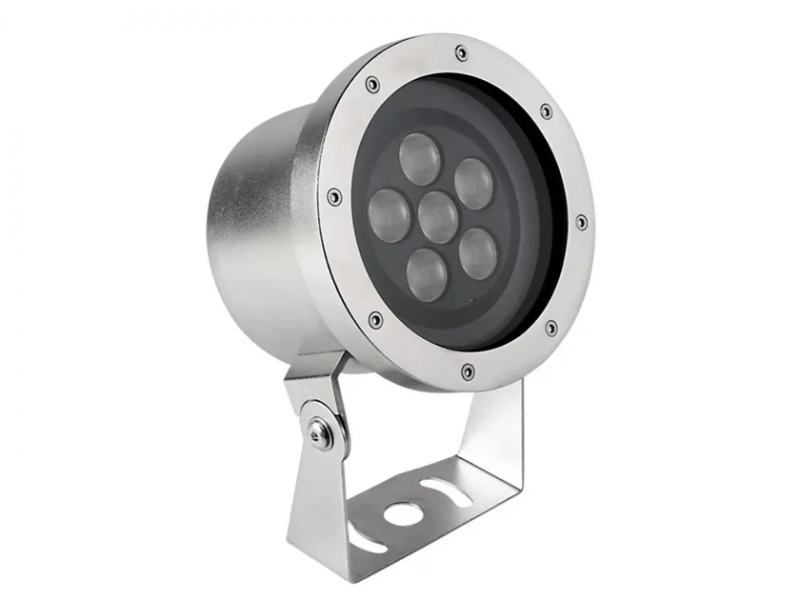

The PROLED IP68 SPOT is suitable as underwater spotlight for fountains, ponds, water gardens etc. for atmospheric or underwater lighting.
Dimmable, autom. colour change, controllable via DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF by MULTI power supplies or PRO CONTROLLER
Incl. stainless steel tripod
This IP68 luminaire can not be operated out of water for over 15 minutes (cooling).
TECHNICAL DATA
IP classification IP68 (for underwater use max. 1 m)
Power source 24 VDC Common Cathode (CC)
Housing stainless steel 316, 13 mm PMMA
Electrical connection 1x cable 3 m H05RN-F 4x 0,75 mm² with 4-PIN IP68 connector male
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +40° C
PHOTOMETRIC DATA
LED type RGB 3-in-1 LEDs 5 Watt
Luminous flux
red 400 Lumen
green 800 Lumen
blue 140 Lumen
r+g+b (white) 1200 Lumen
Wave length
red 620 nm
green 525 nm
blue 460 nm
Beam angle 30°
