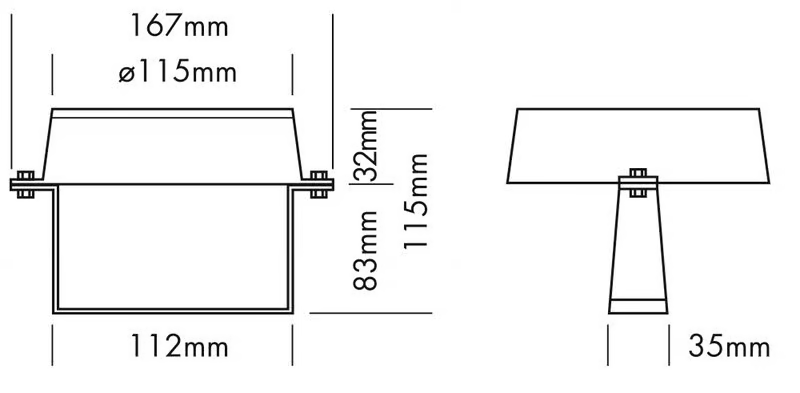

Overall dimensions
Information

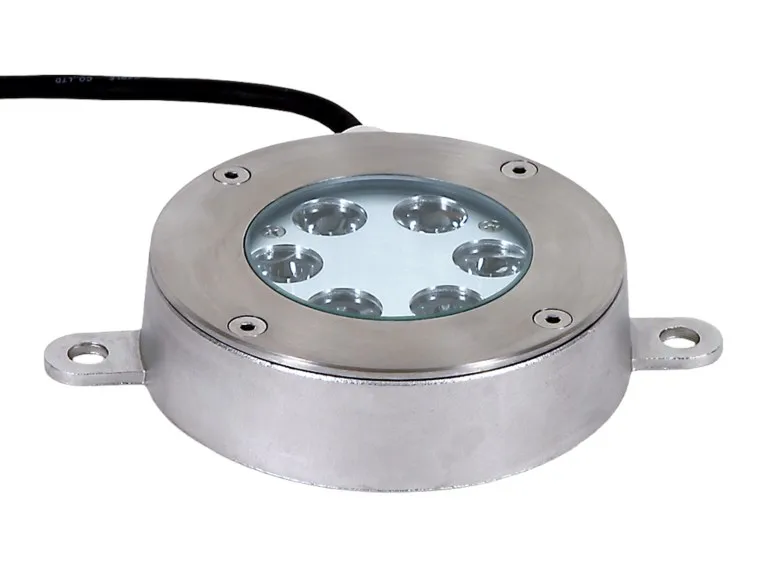

The PROLED IP68 SPOT is suitable as underwater spotlight for fountains, ponds, water gardens etc. for atmospheric or underwater lighting.
dimmable and controllable via DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF by MULTI power supplies or PRO CONTROLLER
This IP68 luminaire can not be operated out of water for over 15 minutes (cooling).
TECHNICAL DATA
IP classification IP68 (for underwater use max. 1 m)
Power source 24 VDC
Housing stainless steel 316, 8 mm tempered glass
Electrical connection 1x cable 3 m H05RN-F 2x 1,0 mm² with 2-PIN IP68 connector male
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +40° C
PHOTOMETRIC DATA
LED type OSRAM 2 Watt Highpower
Luminous flux
white 900 Lumen
warm white 900 Lumen
Colour temperature
white 6000 K
warm white 3000 K
CRI80
Beam angle 15° and 30°.
