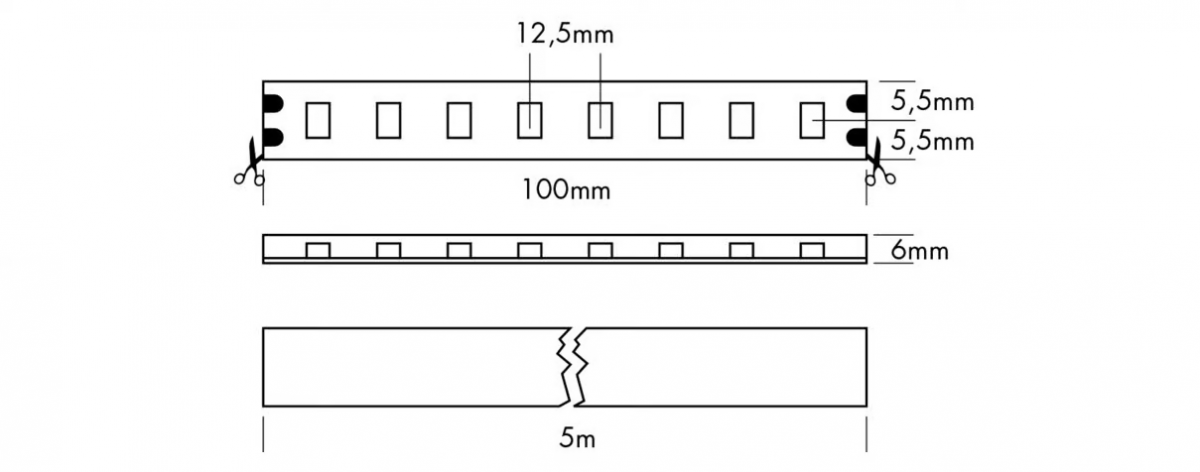

Overall dimensions
Information

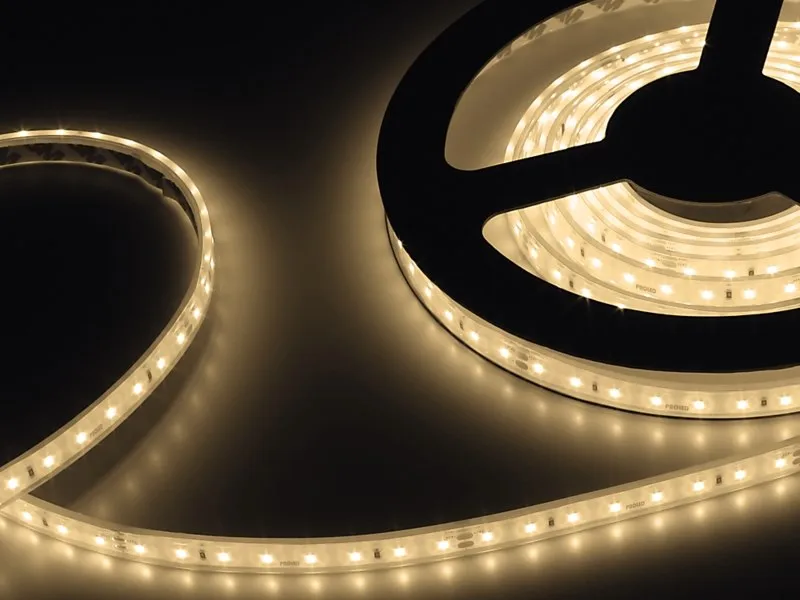

The PROLED FLEX STRIPS are perfect for indirect lighting, as custom made versions for fair or shop applications as well as for all kinds of illumination. Due to their shallow design and the individually adaptable lengths the PROLED FLEX STRIPS offer a wide spectrum of application possibilities.
- High flexibility – adaptable to round shapes.
- Installation with clamps or special glue. The 3M adhesive tape on the strip's backside (self adhesive) is only as fit-up aid.
- IP68 for under water use (power supply cable/end caps IP65 when correctly sealed)
- dimmable and controllable via DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF by MULTI power supplies/controller
TECHNICAL DATA
IP classification IP68 (for under water use)
Power source 24 VDC
Electrical connection 1x cable with 2-PIN connector male
Maximum quantity per power input 5 m
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +45° C
Width x height 11 x 6 mm
min. Bending radius 20 mm
Cuttable all 8 LEDs (10 cm)
PHOTOMETRIC DATA
LED type SMD LEDs
Luminous flux
- white 600 Lumen per m
- neutral white 600 Lumen per m
- warm white 550 Lumen per m
- super warm white 500 Lumen per m
- ultra warm white 450 Lumen per m
Colour temperature
- white 6000 K
- neutral white 4000 K
- warm white 3000 K
- super warm white 2700 K
- ultra warm white 2400 K
CRI90
Beam angle 120°
