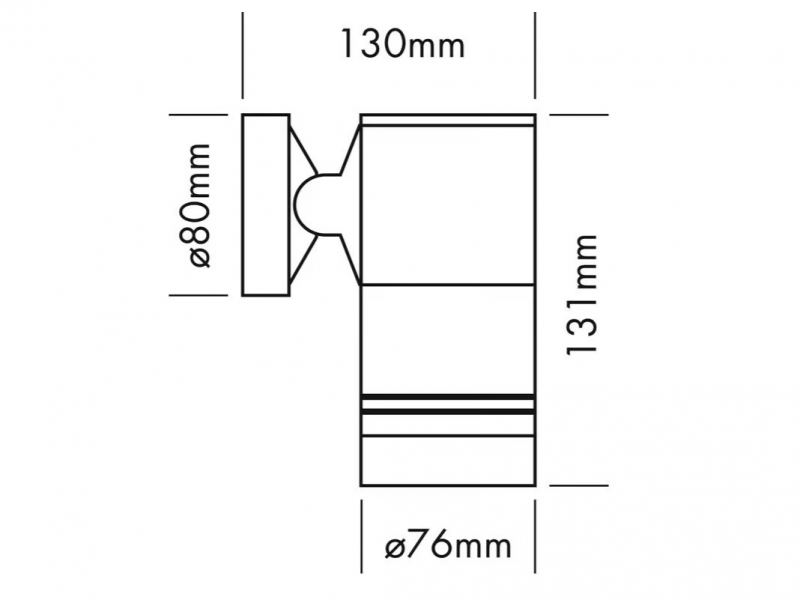

Overall dimensions
Information

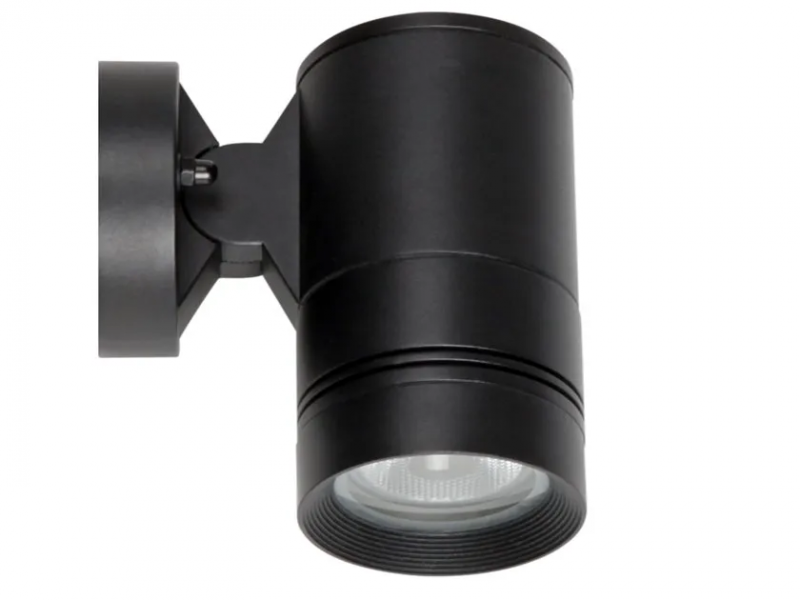

The PROLED SPOT LIGHT WALL RGBW is suitable for emphasis lighting indoors as well as outdoors. Because of the RGBW high power LED (8 Watt) the spot offers homogeneous colormixing and clean natural white.
Dimmable, autom. colour change, controllable via DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF by MULTI power supplies or PRO CONTROLLER.
TECHNICAL DATA
IP classification IP65 (for outdoor use)
Power source 24 VDC Common Cathode (CC)
Housing powder coated aluminium black
Electrical connection 5-PIN terminalblock
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +45° C
PHOTOMETRIC DATA
LED type PROLIGHT RGBW module
Luminous flux
red 50 Lumen
green 60 Lumen
blue 20 Lumen
white 100 Lumen
r+g+b+w 230 Lumen
Wave length
red 620 nm
green 525 nm
blue 460 nm
Colour temperature white 6500 K
Beam angle 20°
