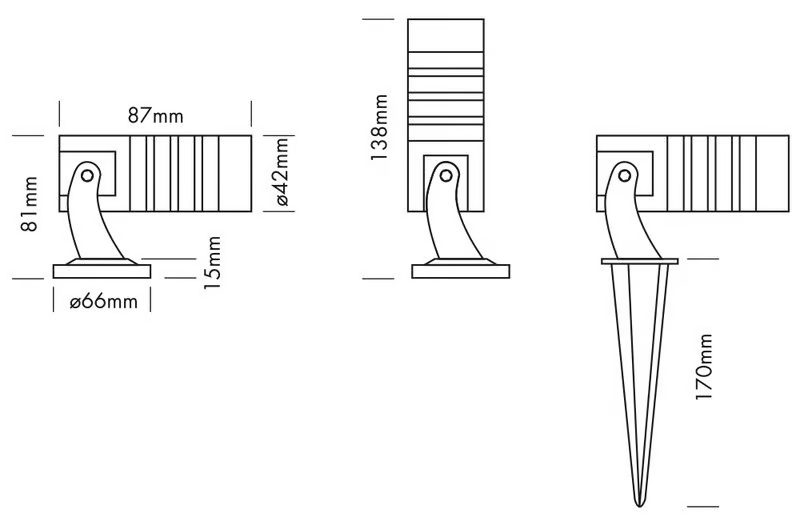

Overall dimensions
Information

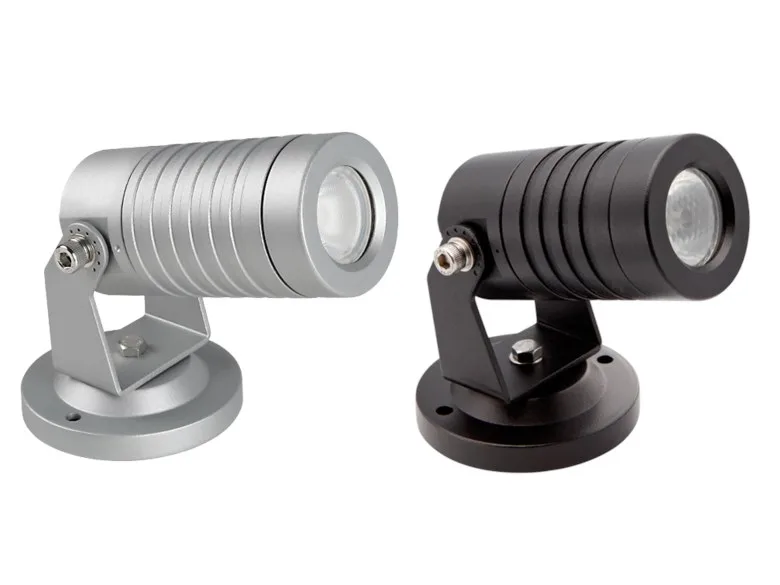

The PROLED SPOT LIGHT IP65 is suitable for emphasis lighting indoors as well as outdoors. Combined with a ground spike it is also perfect for plant and garden lighting.
Dimmable, autom. colour change, controllable via DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF by MULTI power supplies or PRO CONTROLLER
TECHNICAL DATA
IP classification IP65 (for outdoor use)
Power source 24 VDC Common Cathode (CC)
Housing silver anodized aluminium or powder coated aluminium black
Electrical connection 1x cable 2 m H05RN-F 4x 0,75 mm² with 4-PIN IP68 connector male
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +45° C
PHOTOMETRIC DATA
LED type RGB 3-in-1 LED 3 Watt
Luminous flux
red 40 Lumen
green 80 Lumen
blue 30 Lumen
r+g+b (white) 150 Lumen
Wave length
red 620 nm
green 525 nm
blue 460 nm
Beam angle 30°
