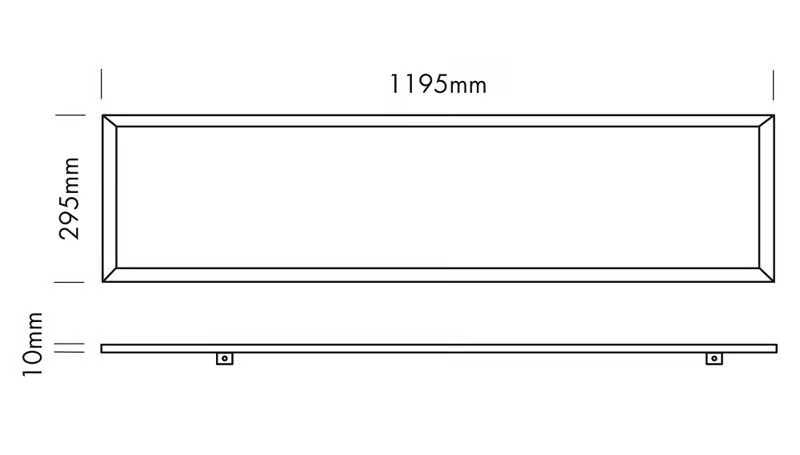

Overall dimensions
Information

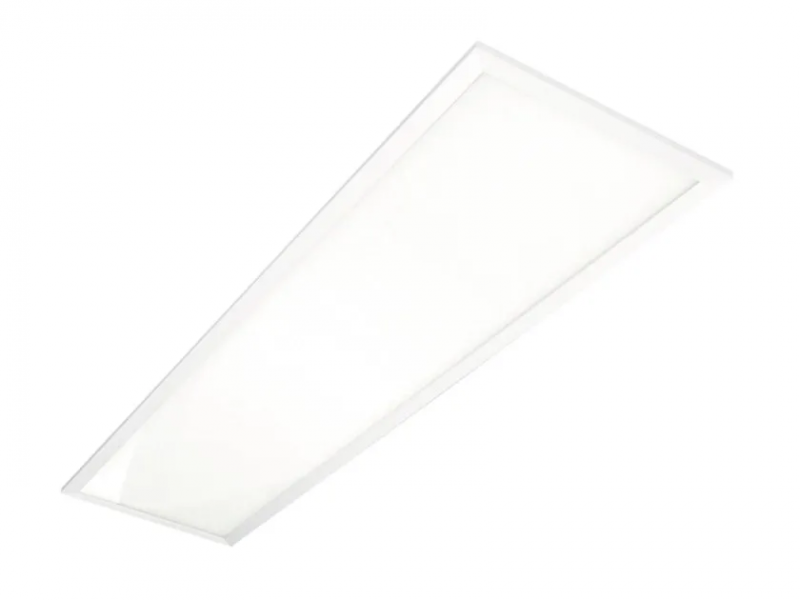

Infinity 30120 is a LED panel with prismatic plexi diffuser offering a uniform light distribution with very low glare.
TECHNICAL DATA
IP classification IP20
Power source 220-240 VAC 50/60 Hz
Housing aluminium frame white
Driver including (1050 mA)
Electrical connection 2-PIN terminalblock
Average lifetime 40.000 h at L80/B10
Operating temperature range -10° C till +45° C
Dimmable no
PHOTOMETRIC DATA
LED type SMD High Lumen
Luminous flux
neutral white 4200 Lumen
warm white 4000 Lumen
Colour temperature
neutral white 4000 K
warm white 3000 K
CRI82
Beam angle 90°
UGR< 19
