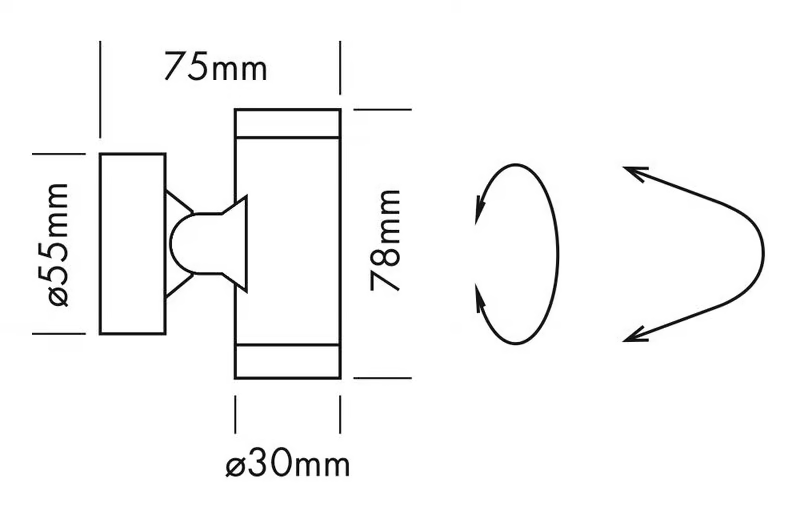

Overall dimensions
Information

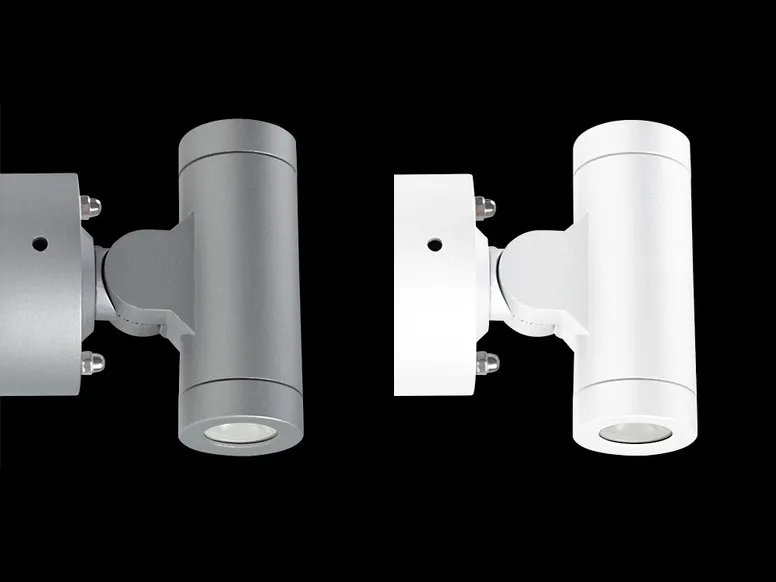

The PROLED WALL LIGHT HAVANNA series is designed for wall mounting and offers various design possibilities in architectural illumination.
Dimmable and controllable via DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF by MULTI power supplies or PRO CONTROLLER
TECHNICAL DATA
IP classification IP65 (for outdoor use)
Power source 24 VDC
Housing powder coated aluminium silver grey or white
Electrical connection 1x cable 0,3 m AWM 2x 0,75 mm² to open wires
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +45° C
PHOTOMETRIC DATA
LED type OSRAM 1 Watt high power
Luminous flux warm white 170 Lumen
Colour temperature warm white 3000 K
CRI80
Beam angle 20°
