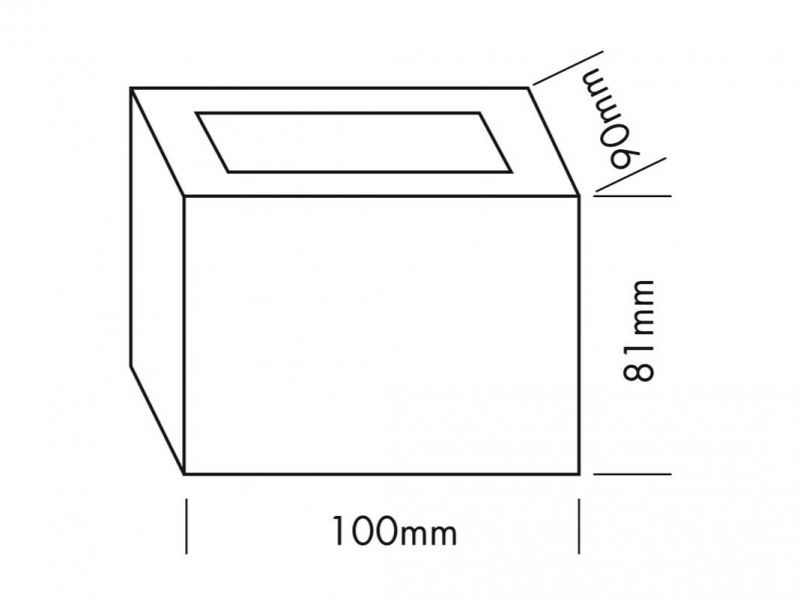

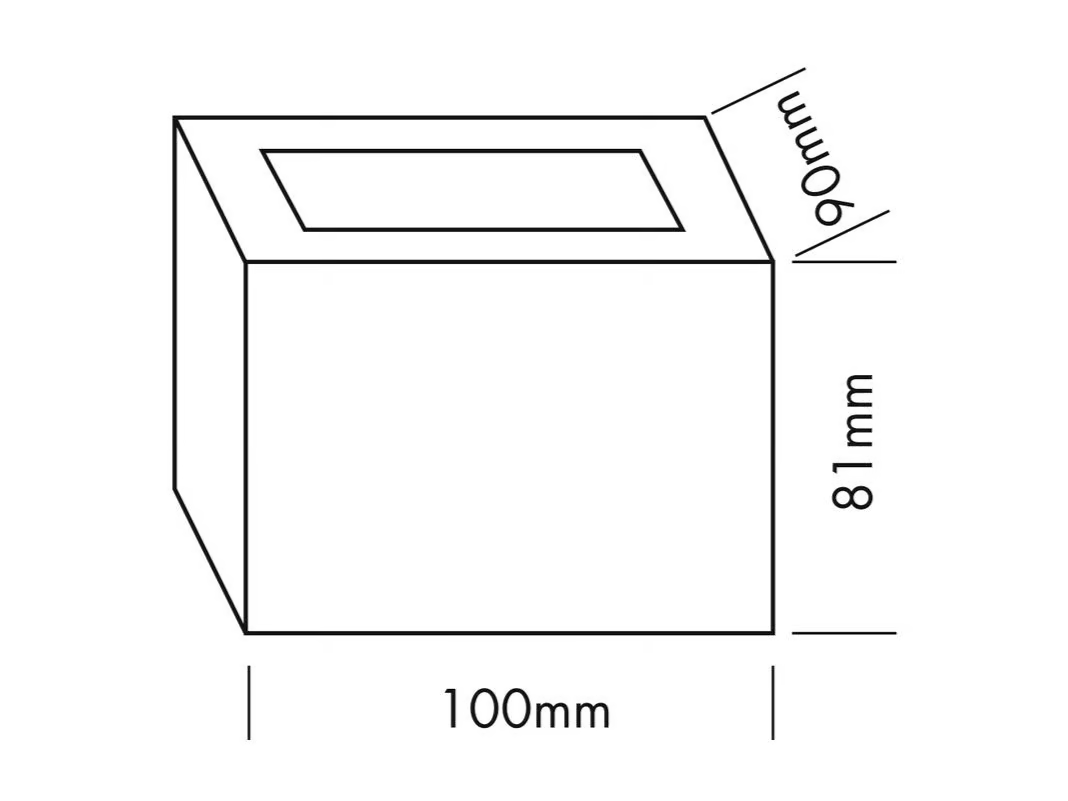

Overall dimensions
Information
The PROLED WALL LIGHT CUBE series is designed for wall mounting and offers various design possibilities in architectural illumination.
TECHNICAL DATA
IP classification IP65 (for outdoor use)
Power source 110-240 VAC 50/60 Hz
Housing powder coated aluminium light grey or white, 6 mm polycarbonat glass
Electrical connection 1x cable 0,5 m H05RN-F 3x 1,0 mm² to open wires
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +45° C
PHOTOMETRIC DATA
LED type NICHIA 3 Watt high power
Luminous flux warm white 200 Lumen
Colour temperature warm white 3000 K
CRI80
