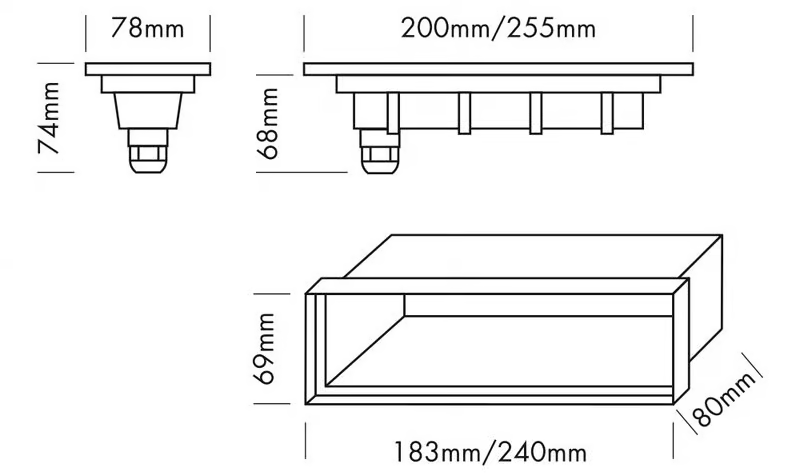

Overall dimensions
Information

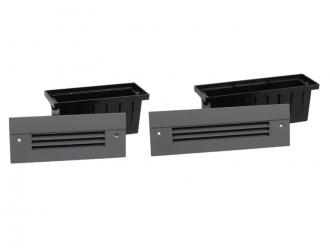

The PROLED WALL LIGHT BUDAPEST is designed for wall or step integration and offers various design possibilities in architectural illumination.
TECHNICAL DATA
IP classification IP65 (for outdoor use)
Power source 24 VDC
Housing powder coated aluminium dark grey or white
Mounting sleeve ABS plastic
Electrical connection 1x cable 0,5 m H05RN-F 2x 1,0 mm² to open wires
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +45° C
PHOTOMETRIC DATA
LED type SMD LEDs
Luminous flux
housing dark grey:
20,0 cm 50 Lumen
25,5 cm 50 Lumen
housing white:
20,0 cm 100 Lumen
25,5 cm 100 Lumen
Colour temperature warm white 3000 K
CRI80
Beam angle1 20°
