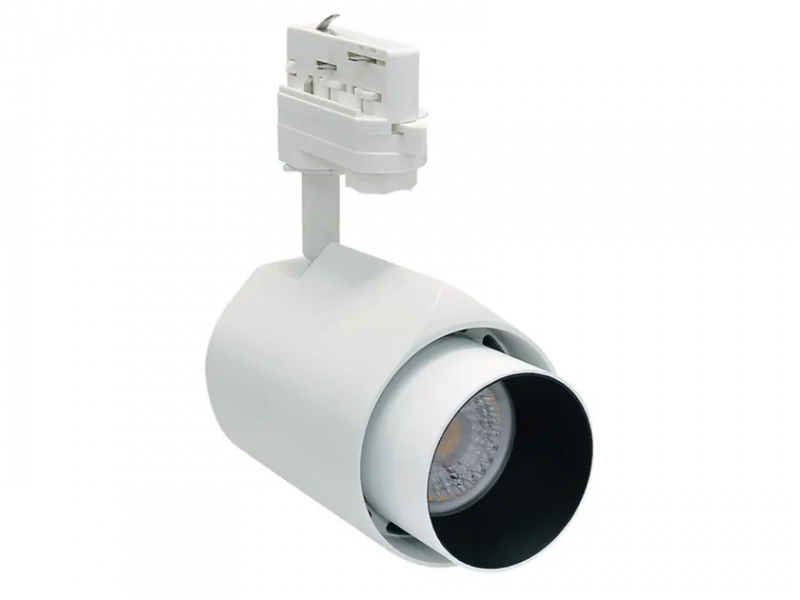

Alliance

ALLIANCE TRACK LIGHTING have a very compact design thanks to their built-in driver. They are therefore less disturbing when they are used in retail spaces, shop windows or showrooms. However, the light performance is their greatest asset. The optical lens ensures an optimum light beam and very low glare. TECHNICAL DATA IP classification IP20 Power source 220-240 VAC 50/60 Hz Housing powder coated aluminium white or black Driver including Electrical connection 3-Phase power track Average lifetime 40.000 h at L80/B10 Operating temperature range -10° C till +45° C Dimmable no PHOTOMETRIC DATA LED type LUMINUS Luminous flux - Alliance 15 Watt + 22 Watt neutral white 15 Watt: 1700 Lumen 22 Watt: 2400 Lumen warm white 15 Watt: 1500 Lumen 22 Watt: 2300 Lumen - Alliance 38 Watt neutral white 4500 Lumen warm white 4200 Lumen Colour temperature neutral white 4000 K warm white 3000 K CRI90 Beam angle 24° UGR < 21 / < 25
